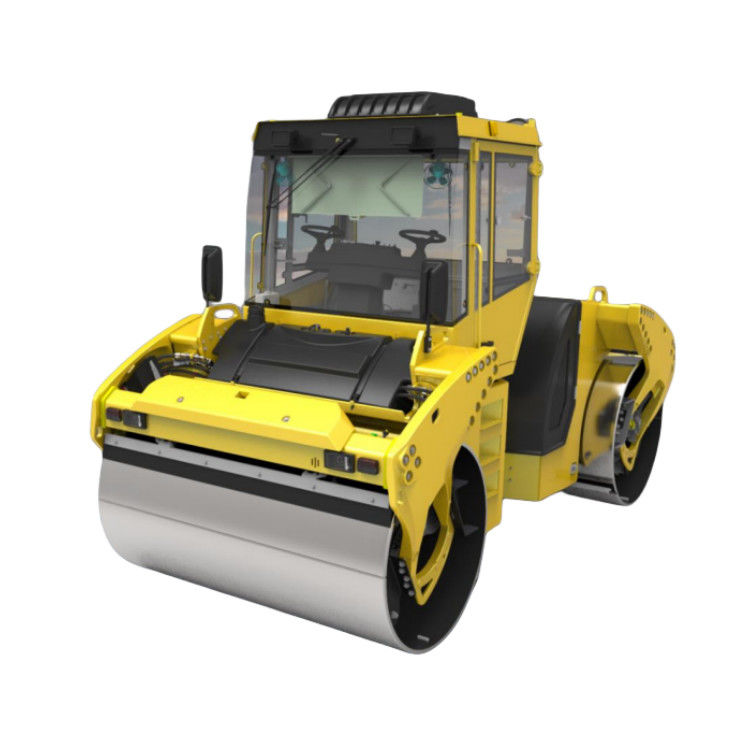

XCMG Double Drum Road Roller Compactor CD133C 13T For Road Construction
  • XCMG Double Drum Road Roller Compactor CD133C 13T For Road Construction
  • XCMG Double Drum Road Roller Compactor CD133C 13T For Road Construction
  • XCMG Double Drum Road Roller Compactor CD133C 13T For Road Construction

XCMG Double Drum Road Roller Compactor CD133C 13T For Road Construction

Place of Origin CHINA
Brand Name XCMG
Certification ISO9001
Model Number ZL50GN
Product Details
Speed Range:
0~6/0~12km/h
Theoretical Gradeability:
35%
Engine Model:
Cummins QSF3.8
Vibration Frequency:
50/40 (Z101) Hz
Rated Power:
104kW
Rated Speed:
2200r/min
Exciting Force:
85/183kN
Roller Diameter:
1236mm
Compaction Width:
2135mm
Highlight:

Double Drum Road Roller Compactor

,

XCMG Double Drum Road Roller

,

13T road roller double drum

Product Description

XCMG Double Drum Road Roller Compactor CD133C 13T For Road Construction

Product Features of Roller

The console can rotate about 35 degrees, improving the driving comfort. The steering wheel can adjust angle according to the need of the driver.

  • Control handle, display, etc. are arranged on the right side to broaden the front view.

  •  Speed frequency management system guides the user to compaction operation.

  •  Guiding the user to improve operation efficiency.

  •  The vibration drum realizes the center of three-in-one combination.

  •  Preventing the over-compaction and less-compaction.



Product Parameters



Basic parameters
Model XD133C
Speed range 0~6/0~12km/h
Theoretical gradeability 35%
Minimum ground clearance 320mm
Minimum turning radius (in/out) 4470/6600mm
Swing angle ±8°
Steering angle ±35°
Wheel base 3430mm
Engine
Model Cummins QSF3.8
Rated power 104kW
Rated speed 2200r/min
Compaction parameters
Vibration frequency 50/40 (Z101) Hz
Nominal amplitude 0.33/0.80mm
Exciting force 85/183kN
Roller diameter 1236mm
Compaction width 1236mm

Hydraulic system
Drive system charge pressure
Drive system maximum pressure 38MPa
Vibration system maximum pressure 32MPa
Steering system maximum pressure 17.5MPa
Weight
Operating weight 13000kg
Front wheel weight distribution 6500kg
Rear wheel weight distribution 6500kg
Static line load (front/rear) 290/290N/cm



Photo Show



XCMG Double Drum Road Roller Compactor CD133C 13T For Road Construction 0





XCMG Double Drum Road Roller Compactor CD133C 13T For Road Construction 1
