| Place of Origin | CHINA |
| Brand Name | SHIM |
| Certification | ISO9001 |
| Model Number | SHIMZ5311TFC |

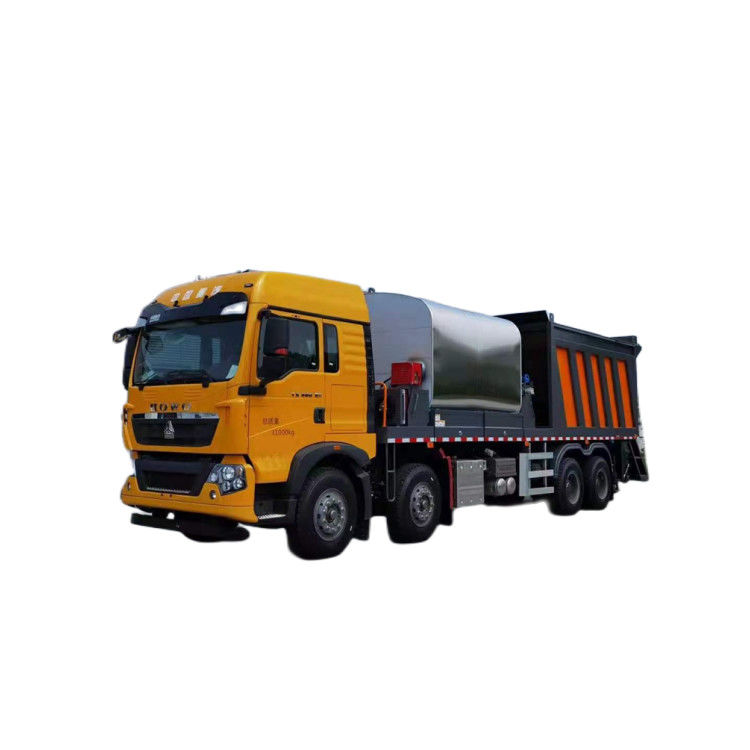

HOWO 8X4 Synchronous Chip Sealer Truck Asphalt Macadam Seal Road Building Machinery
Breif Introduction:
1) Independent heat conduction oil temperature control system : Equipped with independent imported Honda generator , the asphalt tank and thermal oil can be heated without starting the chassis , which is saving the cost.
2) Heating system : Double import Riello G20 burner ,High power stirring in tank, With the circulation system , The whole pipeline heated by thermal oil system; The heating speed is faster, the efficiency is higher, and the energy consumption is lower.
3) Equipped with the Bell Carter rubber asphalt pump: the world's first rubber asphalt pump manufacturer in 1916.
4) Level indicator: equipped with liquid level indicator, low level reminders, anti dry heating, more safety.
5) Spray system: 34 fully automatic control nozzles,0m-4m spraying width , One control one , three overlapping spray, with thermal oil system.
6) Stable chipping spreading system:10 individually controlled switch gates , The size of the switch gates are adjustable ; Automatic compensation spreading device for chipping , which make the spreading is more uniform and beautiful.
Product parameters
|
Model |
SHIMZ5311TFC |
|
Chassis |
HOWO 8*4 |
|
Total Weight(kg) |
31000 |
|
Asphalt tank(L) |
8000 |
|
Aggregate Bin(m³) |
12 |
|
Max. Sealing Width(mm) |
3500 |
|
Asphalt Spraying Rate(L/㎡) |
0.3-3.0 |
|
Chipping Spread Rate(L/㎡) |
2-22 |
|
Hopper working type |
Lifting |
|
Control Type |
Computer |
Product Show:
