Trailer Chipping Spreader Road Building Machinery Chip Sealer To Spread Chips SHIM-SS3000
Product Advantage:
Synchronous Chips Spreader
SHIM-SS3000 chips spreader is matched with asphalt distributor, it is an ideal special equipment for treating asphalt pavement. chips spreader is one of the special machines for building asphalt roads by layer paving method. It is mainly used to evenly distribute a layer of stone chips with a certain particle size on the foundation already paved with asphalt, so as to build the surface and treat the asphalt pavement, also to distribute the stone chips when building the clay-bound macadam pavement.
| Mode | SHIM-SS3000 | |
| Specification | ||
| 1 | Dimension | 3600×3050×1400(mm) |
| 2 | Chipping Size | 3～30(mm) |
| 3 | Spreading Width | MAX 3000(mm) |
| 4 | Total Weight | 2000(Kg) |
| 5 | Spread value | 1-40 m³/ km2 |
| 6 | Spread speed | 50-80m/min |
| 7 | Spread difference | 250mm |
| Main Fitting | ||
| 1 | Hydraulic drive system with CBN-E3 Hydraulic gear Pump | |
| 2 | GX270 Gasoline Engine with OMR-80 Hydraulic Motor | |
| 3 | During the construction, the drive wheel hub is "held" by the pressure plate, and the disassembly takes only a few minutes. | |
| 4 | The machine is equipped with a screen, which can sieve out large materials, and can achieve a uniform spreading effect. | |
| 5 | Strong continuous performance, the machine can be used with several dump trucks | |

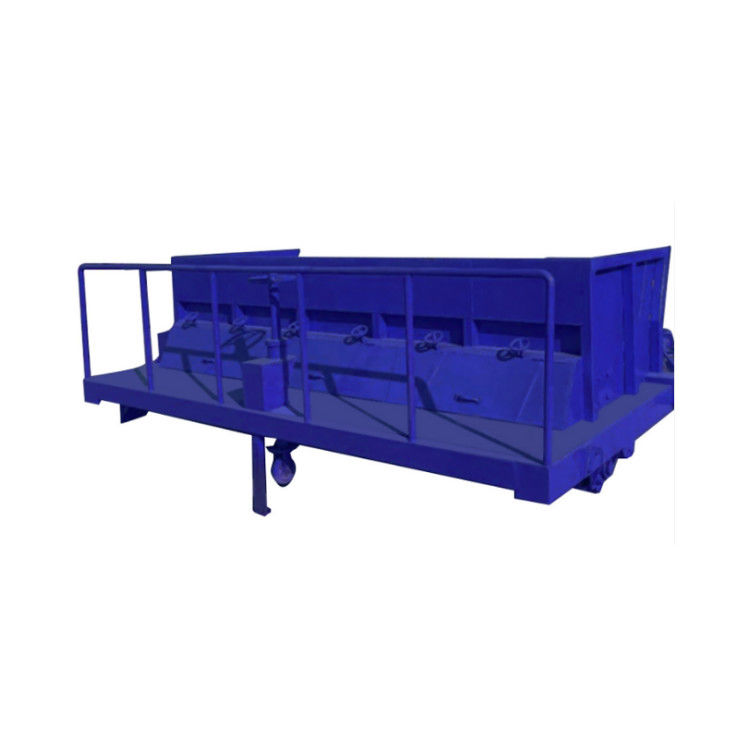

Product Show:
