| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | XZD90 |

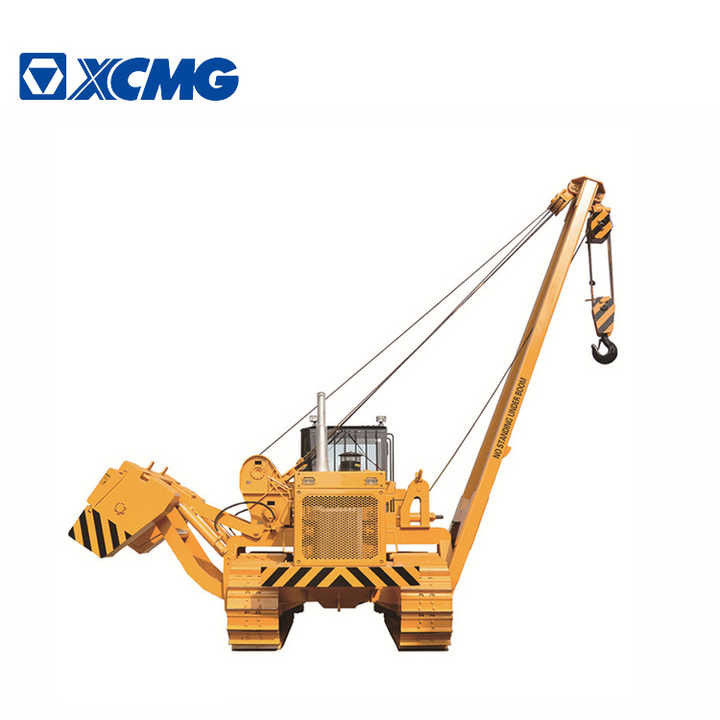

XCMG XZD90 Multifunction Hydraulic Pilot Control Crawler Pipelayers 90Ton Side Boom Pipelayer
Product Features of loader
Pipelayer is an important construction equipment in the construction of oil and gas pipelines, mainly used for laying, aligning, and lowering large-diameter pipes. It has the characteristics of large lifting capacity and walking with heavy objects.
Good visibility to work area and top of the boom with a sky window on the roof, ROPS can be installed as the optional equipment.
Tubular A-Frame boom engineered for exceptional support at maximum lift capacity and easy detachment.
Multi-axis, hydraulic joystick allows simultaneous precise control of the load and booms functions with one hand.Single-lever, hydraulic remote control valves are used for counterweight and two-speed functions.The controls are easy to operate and require minimum operator training.
Product Parameters
| Lifting Capacity at tipping point(t) | 40.00 | ||
| Max Lifting moment at min.load overhang(KN.m) | 478(392KN*1.22m) | ||
| Max Lifting moment at max.load overhang(KN.m) | 400(66.64KN*6.00m) | ||
| Boom Length(m) | 7 | ||
| Max Lifting height of hook(m) | 5 | ||
| Max hoisting speed of hook(6 part line) | 7 | ||
| Boom elevating time(s) | 35 | ||
| Engine | Engine Model | Cummins NT855-C280 | Cummins QSNT-C24O |
| Rated Power(kw/rpm) | 179/2000 | 179/2000 | |
| Track gauge(mm) | 2250 | ||
| Length of track on ground(mm) | 3050 | ||
| Track width(mm) | 660 | ||
| Operating Mode | Hydraulic Pilot Control | ||
| Rated working pressure of system(Mpa) | 20 | ||
| Min turning radius(m) | 3.20 | ||
| Hook winch | Hydraulic driven,Planetary transmission,Free Fall Function | ||
| Diameter of lifting wire rope(m) | 20 | ||
| Ranging wich | Hydraulic driven,Planetary transmission | ||
| Diameter of Ranging wire rope(m) | 18 | ||
| Operating Weight(kg) | 34000.00 | ||
