XCMG Other Road Equipment Full Hydraulic Asphalt Concrete Paver RP605
  • XCMG Other Road Equipment Full Hydraulic Asphalt Concrete Paver RP605
  • XCMG Other Road Equipment Full Hydraulic Asphalt Concrete Paver RP605
  • XCMG Other Road Equipment Full Hydraulic Asphalt Concrete Paver RP605

XCMG Other Road Equipment Full Hydraulic Asphalt Concrete Paver RP605

Place of Origin CHINA
Brand Name XCMG
Certification ISO9001
Model Number RP605
Product Details
Basic Paving Width:
2250-4500mm
Max. Paving Widthradeability:
6000mm
Engine Model:
Cummins QSB4.5
Max. Gradcability:
20%
Rated Power:
119kW
Rated Speed:
2000r/min
Grounding Length:
2705mm
Track Widtn:
300mm
Hopper Capacity:
12T
Highlight:

XCMG Other Road Equipment

,

Other Road Equipment Full Hydraulic

,

RP605 Asphalt Concrete Paver

Product Description

XCMG Full Hydraulic Asphalt Concrete Paver RP605

Product Features of Roller

  •  The walking track has a large grounding area and strong driving force; the walking system adopts imported brand hydraulic components with high reliability; the 300mm split track shoe is used, which is easy to disassemble and low maintenance cost;
  •  The left and right independent feeding and distributing systems are strong and sufficient. Ratio adjustment of material distribution speed, one-button hydraulic material distribution lifting device, easy to operate;
  • The E450 hydraulic telescopic screed adopts a four-support structure and a single vibrating compaction device to improve construction stability and road surface forming quality; it adopts intelligent frequency conversion heating technology to make heating more efficient.



Product Parameters



Basic parameters
PAVER
Model RP605
Basic paving width 2250-4500mm
Max. paving width 6000mm
Max. pave thickness 350mm
Max. paving speed 27m/min
Max. drive speed 4km/h
Max. Gradcability 20%
Engine
Model Cummins QSB4.5
Emission EUR Ill
Fuel Diesel
Rated power 119kW
Rated speed 2000rpm
Crawler
Grounding length 2705mm
Track widtn 300mm
Conveyor
Hopper capacity 12T
Scraper numbers 2
Scraper speed(maximum) 30m/min
Auger
Speed(maximum) 92rpm
Diameter 420,360mm
Electrical system
Battery voltage 24V
Weight
Tractor weight 13.5T
Operating weight 16.5T
Total weight 17T





Photo Show

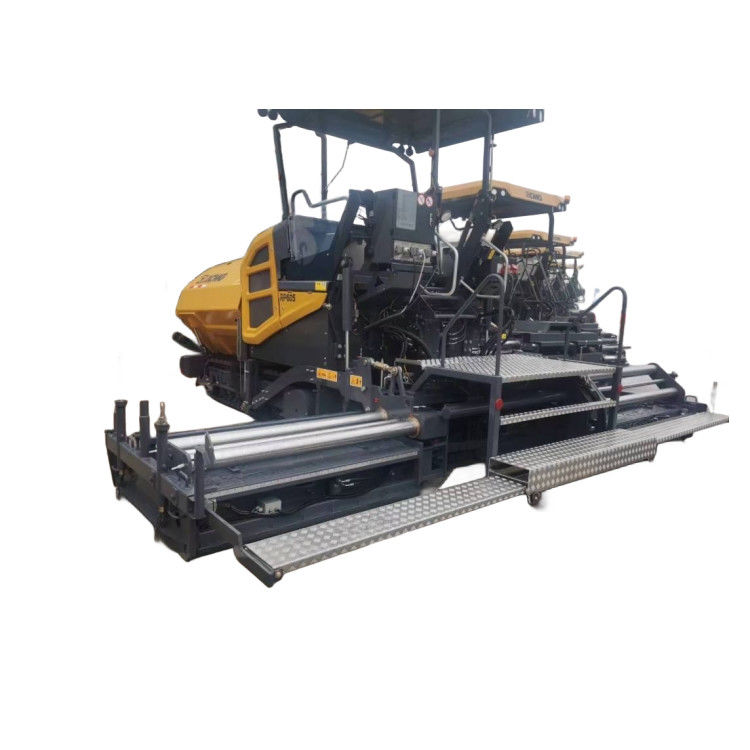

XCMG Other Road Equipment Full Hydraulic Asphalt Concrete Paver RP605 0



XCMG Other Road Equipment Full Hydraulic Asphalt Concrete Paver RP605 1
