| Place of Origin | CHINA |
| Brand Name | SHIM |
| Certification | ISO9001 |
| Model Number | SHIM-20 |
1500L 2000L Tank Capacity 2axle Trailer Asphalt Distributor With Hand Spray
Breif Introduction:
Trailer Bitumen Distributor is an intelligent high technology product, it’s a professionally spraying equipment of emulsified asphalt, diluted asphalt, hot asphalt, heavy traffic asphalt and high viscosity modified asphalt.
Product parameters
|
Model |
SHIM-10 |
SHIM-20 |
|
Dimension(mm) |
4700×1900×2150 |
4950x1980x2150 |
|
Lane way |
Trailer |
|
|
Axis |
2 |
2 |
|
Brake mode |
Oil brake |
|
|
Turning way |
Connecting bar |
|
|
Spring leaf |
3 Tons, 7mm, 5pcs |
4 Tons,7mm, 7 pcs |
|
Tire specification |
165R13 |
185R14 |
|
Tank capacity(L) |
1000 |
2000 |
|
Insulation Thickness |
50mm Fiber glass |
|
|
Spray valve |
0.5-3.0kg |
|
|
Spray bar length(m) |
2 |
|
|
Spray bar nozzles |
fan-shaped, 13pcs |
|
|
Hang Spray Rod Length (m |
5 |
|
|
Hand spray nozzle |
Conical, 1pc |
|
|
Engine model |
Changchai ZS1100 |
|
|
Engine power (Kw) |
11 |
|
|
Cooling method |
Evaporative water cooling |
|
|
Generator model |
HONDA EC2500 |
|
|
Generator power |
2KW |
|
|
burner |
G10 |
|
|
Fuel types |
Diesel |
|
|
Asphalt pump model |
YCB/0.6 |
|
|
Asphalt pump flow(m³/h) |
6 |
|
|
Air compressor model |
0.1/8 |
|
|
Max. air pressure(Mpa) |
0.8 |
|
|
Operating voltage |
220v/12v |
|

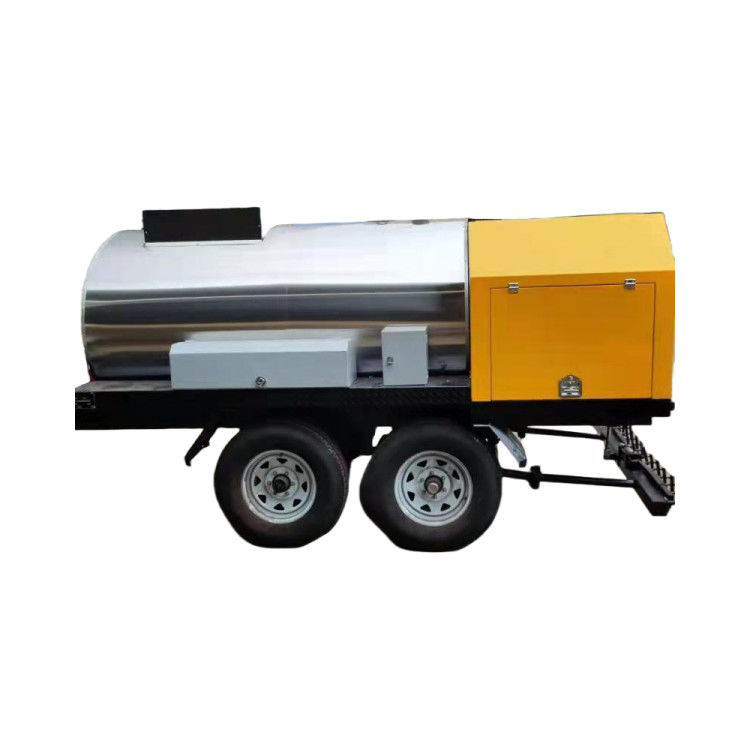

Product Show:
