| Place of Origin | CHINA |
| Brand Name | SDLG |
| Certification | ISO9001 |
| Model Number | E620hev |

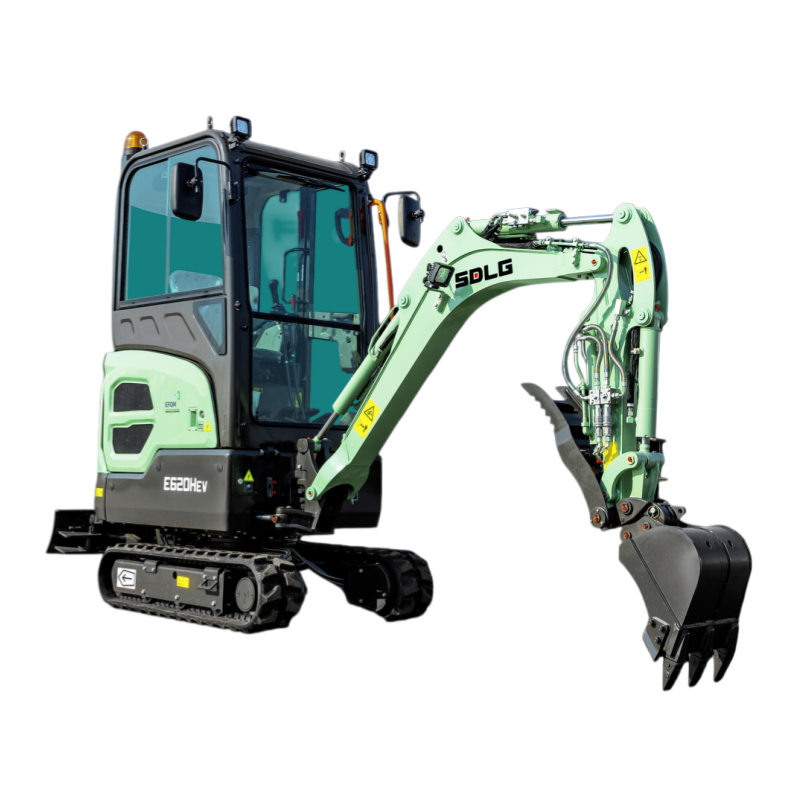

SDLG Lingong Lgmg E620hev Mini EV Electric Excavator With 0.04cbm Bucket
Product Advantages
1.Equipped with reliable power battery packs, offering strong power, zero emissions, and low noise.
2.Maintenance-free battery allows 1hours charging for 4-6 hours run time.
3.7-inch touch screen to display the battery level and power, compatible with touch and keypad, integrated with data display of each module.
4.The independent intelligent battery water cooling unit can automatically adjust the battery temperature during charging and discharging to make the battery temperature work within the optimal temperature range.
5.The cab can be lifted with a large lifting angle to facilitate component maintenance.
6.Standard units offer X1/X3 pipelines, meeting a wide range of attachments.
| Operating weight (kg) | 2,350 (5,181) |
| Rated voltage,V | 358.4 |
| Battery rated capacity,kWh | 24 |
| Rated power,kW (hp) | 9.2 |
| Average runtime,h | 4-6 |
| Charging hour,h | 1 |
| Pumps capacity,L/min (gal/min) | 52 (13.8) |
| Main relief set pressure,bar (psi) | 240 (3,480) |
| Max. digging force of bucket,kN (lbf) | 16.5 (3,709) |
| Max. digging force of arm,kN (lbf) | 10 |
| Travel low speed,km/h (mi/h) | 2(1.2) |
| Travel high speed,km/h (mi/h) | 4 (2.5) |
| Gradeability,° | 25 |
| Swing speed,r/min | 9.2 |
| Ground pressure,kPa (psi) | 37 (5.4) |
| Boom length,mm (ft in) | 1,830 (6') |
| Arm length,mm (ft in) | 965 (3' 2") |
| Bucket capacity (m³) | 0.04 (0.05) |
| Overall shipping size (L * W * H),mm (ft in) | 3,805 (12' 5.8")*980 (3' 2.6")*2,635 (8' 7.7") |
| A Max. digging reach,mm (ft in) | 3,975 (13' 0.5") |
| B Max. digging reach on ground,mm (ft in) | 3,915 (12' 10.1") |
| C Max. cutting height,mm (ft in) | 3,510 (11'6.2") |
| D Max. dumping height,mm (ft in) | 2,460 (8' 0.9") |
| E Max. digging depth,mm (ft in) | 2,305 (7' 6.7") |
| F Max. digging depth (horizontal 8 ft),mm (ft in) | 1,575 (5' 2") |
| G Max. vertical wall digging depth,mm (ft in) | 1,740 (5' 8.5") |
| I Tail swing radius,mm (ft in) | 980 (3' 2.6") |
| J Min. front swing radius,mm (ft in) | 1,670 (5' 5.8") |
| K Undercarriage length,mm (ft in) | 1,585 (5' 2.4") |
| M Track width,mm (ft in) | 230 (9") |
Details Images
