| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO |
| Model Number | XE200D |

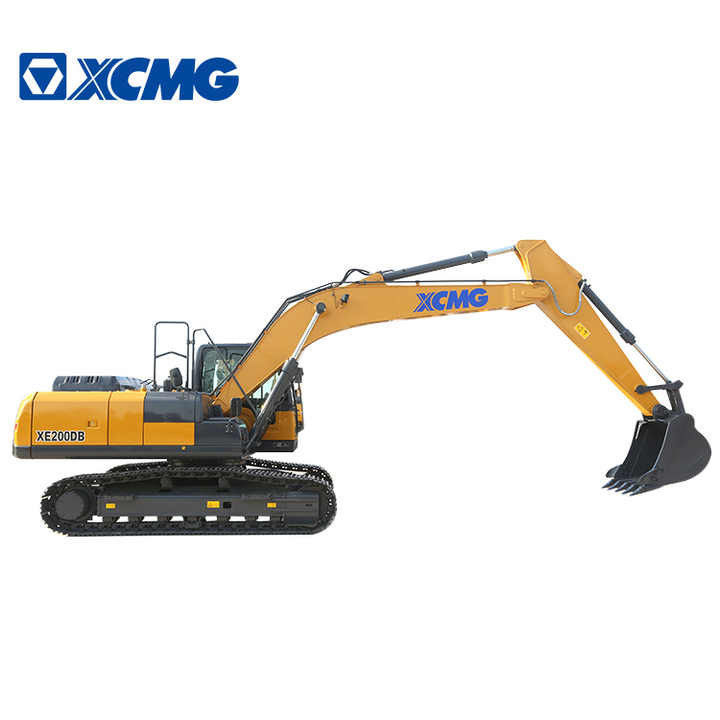

XCMG Hydraulic Excavator XE200D Rc 20 Ton Cummins Engine Crawler Excavator
Product Advantages
XCMG XE200D rc hydraulic excavator 20ton Crawler Excavator
Product Parameter
|
Description |
Unit |
Parameter value |
|||
|
Operating weight |
kg |
21500 |
|||
|
Bucket capacity |
m³ |
0.9～1.1 |
|||
|
Engine |
Model |
Engine |
CUMMINS QSB7 |
||
|
Style |
Direct injection |
--- |
√ |
||
|
Four strokes |
--- |
√ |
|||
|
Water cooling |
--- |
√ |
|||
|
Turbo-charging |
--- |
√ |
|||
|
Air to air intercooler |
--- |
√ |
|||
|
No. of cylinders |
--- |
6 |
|||
|
Output power |
kW/ r/min |
135/2050 |
|||
|
torque/speed |
N.m |
740/1250 |
|||
|
Displacement |
L |
6.7 |
|||
|
|
Travel speed(H/L) |
km/h |
5.3/2.9 |
||
|
Gradeability |
% |
70 |
|||
|
Rotary speed |
r/min |
12.6 |
|||
|
Ground pressure |
kPa |
46.3 |
|||
|
Bucket digging force |
kN |
138 |
|||
|
Arm digging force |
kN |
112 |
|||
|
|
Main pump |
-- |
K3V112DT |
||
|
Rated flow of main pump |
L/min |
2×207 |
|||
|
Main safety valve pressure |
MPa |
31.4/34.3 |
|||
|
Pressure of pilot system |
MPa |
3.9 |
|||
|
Oil Capacity |
Fuel tank capacity |
L |
400 |
||
|
Hydraulic tank capacity |
L |
220 |
|||
|
Engine oil capacity |
L |
19.5 |
|||
|
|
Overall length |
mm |
9625 |
||
|
Overall width |
mm |
2990 |
|||
|
Overall height |
mm |
3100 |
|||
|
Width of platform |
mm |
2830 |
|||
|
Length of crawler |
mm |
4255 |
|||
|
Overall width of chassis |
mm |
2990 |
|||
|
Width of crawler |
mm |
600 |
|||
|
Wheel base of crawler |
mm |
3460 |
|||
|
Crawler gauge |
mm |
2390 |
|||
|
Clearance under counterweight |
mm |
1050 |
|||
|
Min. ground clearance |
mm |
476 |
|||
|
Min. rear-end swing radius |
mm |
2890 |
|||
|
|
Max. digging height |
mm |
9680 |
||
|
Max. dumping height |
mm |
6815 |
|||
|
Max. digging depth |
mm |
6460 |
|||
|
Max. digging depth at the range of level 8 feet |
mm |
6275 |
|||
|
Max. vertical wall digging depth |
mm |
5590 |
|||
|
Max. digging reach |
mm |
9790 |
|||
|
Min. swing radius |
mm |
3530 |
|||
Detailed Photos
