| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO |
| Model Number | XE200D |

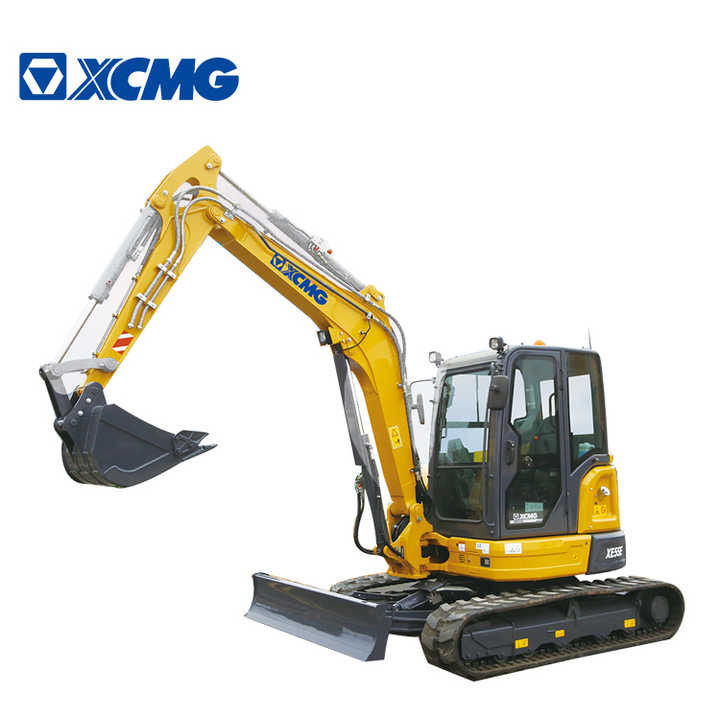

XCMG Hydraulic Excavator EPA EURO 5 Excavators 5 Ton Mini Excavator Hydraulic Mini Digger XE55E
Product Advantages
China EPA EURO 5 Excavators 5 Ton Mini Excavator Hydraulic Mini Digger XE55E from XCMG Factory.
Ergonomic and Comfortable
With the XE55E, your comfort comes fifirst. The cab has a wide entrance door, which makes it more accessible. The OPG/TOPS/ROPS(ISO 3471) cabin maximizes your safety.
Easy Service Access
Our XE55E was developed with particular attention to easy service access. With a single access point for the daily
maintenance of all main components, fuel level gauge, and refueling through the lockable cap.
Product Parameter
Item | Unit | Parameters | |
Model | Operating weight | Kg | 5700 |
Bucket capacity | m³ | 0.16 | |
Engine | Rated power | kw/rpm | 31.2/2200 |
Maximum torque/speed | N.m | 159.8/1500 | |
Displacement | L | 2.434 | |
Main performance | Travel speed (H/L) | km/h | 4.6/2.8 |
Swing speed | r/min | 9.5 | |
Gradeability | ° | ≤35 | |
Ground pressure | kPa | 32.0 | |
Bucket digging force | kN | 44.5 | |
Arm digging force | kN | 29.2 | |
Maximum tractive force | kN | 52.8 | |
Hydraulic system | Rated flow of main pump | L/min | 158.4 |
Main safety valve pressure | Mpa | 30 | |
Travel system pressure | Mpa | 30 | |
Swing system pressure | Mpa | 24 | |
Pilot system pressure | Mpa | 3.5 | |
Oil capacity | Fuel tank capacity | L | 68 |
Hydraulic tank capacity | L | 46 | |
Engine oil capacity | L | 9.5 | |
Appearance size | Overall length | mm | 5340 |
Overall width | mm | 1960 | |
Overall height | mm | 2555 | |
Width of platform | mm | 1830 | |
Track length | mm | 2490 | |
Overall width of chassis | mm | 1960 | |
Track shoe width | mm | 400 | |
Wheel base of crawler | mm | 1990 | |
Track gauge | mm | 1560 | |
Counterweight clearance | mm | 637 | |
Minimum ground clearance | mm | 315 | |
Minimum tail swing radius | mm | 1040 | |
Track height | mm | 550 | |
Working range | Maximum digging height | mm | 5650 |
Maximum dumping height | mm | 4010 | |
Maximum digging depth | mm | 3640 | |
Maximum depth cut for 2240mm(8 ft) level bottom | mm | 3200 | |
Maximum vertical wall digging depth | mm | 2690 | |
Maximum digging radius | mm | 6110 | |
Minimum swing radius | mm | 2430 | |
Detailed Photos
