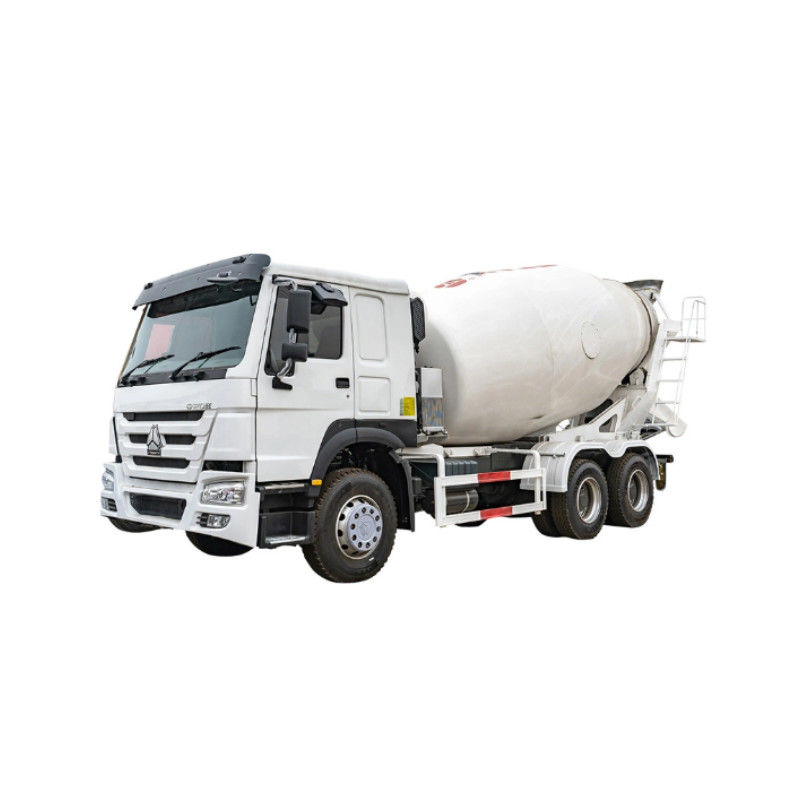

Concrete Mixer Truck
>
|
| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | ISO9001 |
| Model Number | ZZ1257N3647E1 |
Product Parameter
|
brand
|
Sinotruk Howo
|
|
|
Cabin
|
Driving type 6x4, LHD
|
|
|
HW76 single bed
|
||
|
Vehicle Main Dimensions
|
Overall dimensions (L x W x H)mm
|
10245x2496x3450
|
|
Wheel base (mm)
|
3600+1350
|
|
|
Wheel track (front/rear) (mm)
|
2022/2022
|
|
|
Approach/Departure angle(°)
|
16/24
|
|
|
Max. driving speed(km/h)
|
90
|
|
|
Engine
|
Type
|
4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
|
|
Model
|
WD615.47
|
|
|
Horse Power(HP)
|
371
|
|
|
Emission standard
|
Euro II
|
|
|
Gearbox
|
10 forwards & 2 reverse
|
|
|
Steering
|
Left hand drive
|
|
|
Tire
|
12R22.5 tubeless tires with one spare
|
|
|
Mixer Drum
|
Mixer Capacity
|
16 cubic meters
|
|
Drum thickness
|
6mm
|
|
|
Blade thickness
|
4mm
|
|
|
Tanker Material:
|
16MnQ345 Carbon Steel
|
|
|
Filling Rate(%)
|
59
|
|
|
Input Speed (m3/min)
|
≥2.8
|
|
|
Output Speed (m3/min)
|
≥1.2
|
|
|
Surplus Ratio
|
≤0.5
|
|
|
|
Tanker Rotate Speed(rpm)
|
0~17
|
|
|
Hydraulic Pump
|
Italy Brand: PMP
|
|
Drum Drive System
|
Hydraulic Motor
|
Italy Brand: PMP
|
|
|
Speed Reducer
|
Germany Brand
|
|
|
Radiator
|
KAITONG
|
|
|
Water Tank Volume(L)
|
400
|
