Concrete Mixer Truck
>
|
| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | CE |
| Model Number | ZZ1257N3841W |

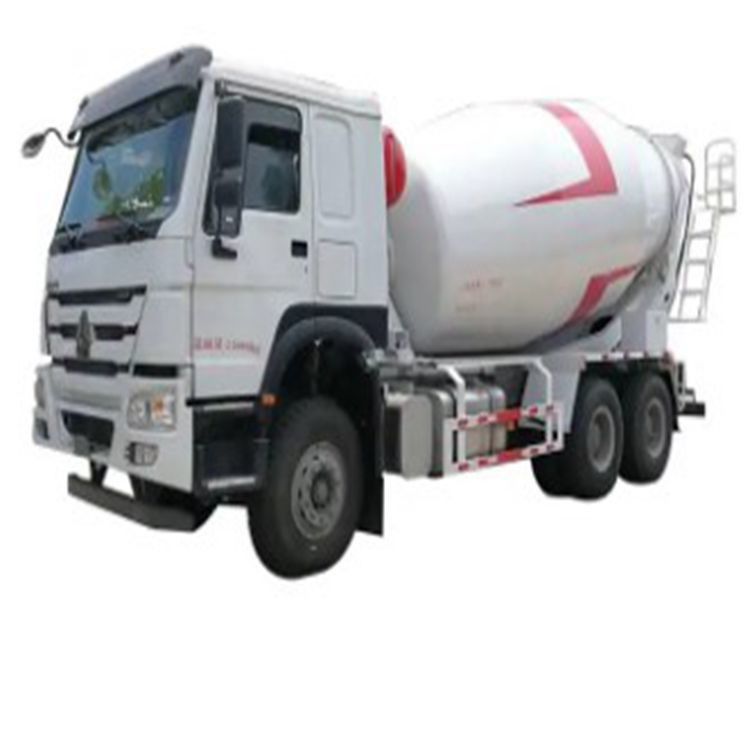

SINOTRUCK Big Concrete Machinery 12cbm 9m3 10m3 12m3 16m3 Mobile Cement Concrete Mixer Truck For Rigeria
Product Description
1. Blade's unique wear-resistance design: Use the samewear-resistant materialas drum body to improve wear resistance; Added wearing strip in the end to extend service life; Using advanced blade design, the filling rate is higher, and the drum body loading
capacity is increased by 5%.
Chassis Model | ZZ1257N3841W |
Dimension | 9710*2496*3955 |
Engine | |
Model | WD615.47 |
Power | 371hp |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection |
Kind of Fuel | Diesel |
Gear Box | HW19710 transmission ,10 forward and 2 reverse |
Axles | |
Front Axle Model | HF9 axle. Capacity: 9000kg |
Rear Axle | HC16 axle. Capacity:2X 16000kg |
Brake System | |
Service brake | ABS |
Parking brake | spring energy, compressed air operating on rear wheels |
Auxiliary brake | Engine exhaust brake |
Steering system | |
Model | ZF8118 |
Type | hydraulic steering with power assistance |
Wheels & Tyres | |
Type | 12.00R20 |
Tank capacity | 10cbm |
Mixer Pump | Eaton(USD Brand) |
Motor | Eaton(USD Brand) |
Speed Reducer | Bonfiglioli(Italy Brand) |
