Name

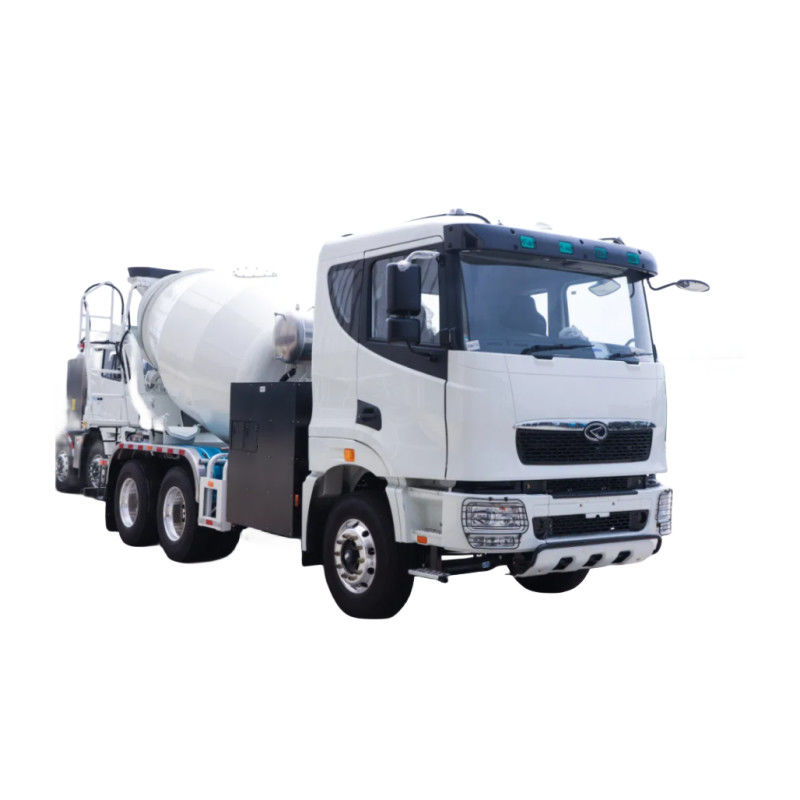

H9 6x4 Mixer Truck

Brand / Series

CAMC / H9 electric energy type

Drive type

6x4

Wheel base(mm)

3600

Quasi-tow mass(kg)

34865

Kerb Weight (kg)

6805

Rated GVW/ GVW (kg)

6805/18000

Overall dimension (mm)

5915x2495x3200

Type

CAMC H9 flat roof Cab

Color

Standard color: red, yellow, blue, white; others: optional but charge

Parameter

With two berth,Berth curtain,Leather 4-spoke Steering Wheel,Rear window,electronic and Hydraulic reversal cab,power window,
hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, heating & ventilation system, adjustable roof
flap, with stereo radio and MP3, and adjustable steering wheel, air horn, single berth with 4-point support fully floating
suspension and shock absorber with transverse stabilizer, safety belt.

Others

A/C, radio,MP3, one sleeper, curtain etc.

ENGINE

Supplier

CAMC-The Chinese most advanced truck Engine Producer

Model

Type

Four-troke, water-cooled, in-line, wet-liner, direct-injection

Maximum power/horsepower(kw/hp)

254/345

Maximum rated speed(rpm)

1900

Max torque(N.m/rpm)

1660/1100-1400

Cylinders

6

Bore x Stroke (mm)

118*150

Displacement (L)

9.84

Controller type

Electrical

Air cleaner

Dry paper element

Emission Standard

Euro V

TRANSMISSION

Supplier

CAMC (same level as ZF technology)

Model

9SDB2051A

Type

Mechanical & manual with servo & Synchronizer & creep

Speed ratio

9 forward ratio:15.49, 12.07,8.35,5.67,4.07,2.96,2.05,1.39,1.00

1 reverse ratio:14.19

CLUCH

Type

Single- plate dry diaphragm spring clutch, diameter 430(A) mm, hydraulically operating with air assistance

Plate diameter

430mm

STEERING SYSTEM

Driving position

Left or Right hand drive available

Type

hydraulic steering with power assistance

Ratio

22.2-26.2:1

Supplier

CAMC

Front axle

CAMC technology steering axle with double T-cross section, Rated capacity:7.5T

Rear axle

CAMC technology 16T casting axle , with double reduction and differential locks between axles, Rated capacity:16T

ratio: 4.10
