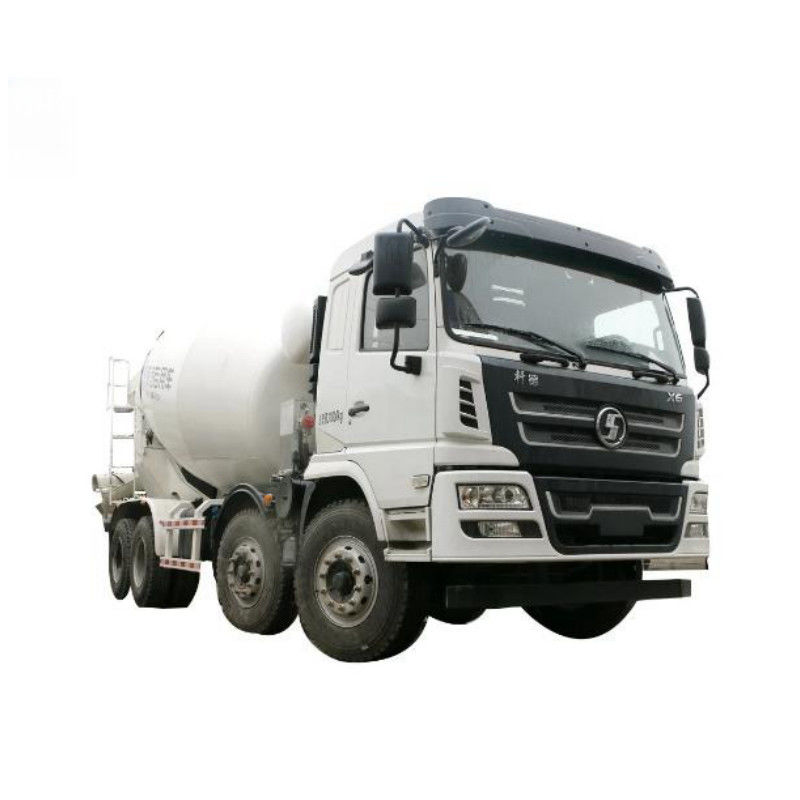

Concrete Mixer Truck
>
|
| Place of Origin | CHINA |
| Brand Name | SHACMAN |
| Certification | ISO9001 |
| Model Number | YLL500001-1 |
Product Parameter
| Basic Info. | |||
| Driving type | 6X4 | Dimensions | 8.7×2.5×3.95m |
| Suspension | 1.45/2.35m | Wheelbase | 3600+1300mm |
| Load capacity | 12.805T | Vehicle weight: | 11.5T |
| F/R track base | F:1970mm;R:1750/1750mm | ||
| Engine Info. | |||
| engine model: | WP7.270E51 | fuel | diesel |
| cylinder: | 6 | maximum power output | 199kW |
| mx horsepower | 270HP | displacement | 7.47L |
| emsssion | EURO 2/3/4/5 | engine type | In-line six cylinders, electrically controlled high pressure common rail +SCR |
| Modification Info. | |||
| Mixer Volume: | 5.8m³ | others: | Cabin: Four-point mechanical suspension, sun visor, central locking, multimedia display (excluding rearview camera), and lower protection for the water tank. |
| Model: | FAST 10JSD120B | gear | 10 |
| Chasis | |||
| Brand | Shancman | Model | SX1250GP5 |
| Series: | XuanDe X6 | Frame Dimension: | 861x280/8+6mm |
| Front Axle | 153B | Rear Axle: | 153B+153B |
| speed ratio | 5.571 | spring leaf | 45179 |
| Tire | |||
| Number: | 10 | Specification: | 10.00R20/18PR |
