Concrete Mixer Truck
>
|
| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | G10K |
1,On the basis of in-depth and integrative research on the industry, the XCMG new generation truck mixers are system optimized by taking the integrated modularization design to truly realize the integrated innovation.
2,Particular mixing technology with continuous trace, original double log spiral technology with changeable lift angle and changeable screw pitch and optimized auxiliary blades and pressure-reducing hole design can make the operation path of the spiral in perfect state and can ensure the best concrete flowing trend in mixing drum and more uniformly discharging.
3,Twin-output control, lightweight technology and anti-scattering technology make the vehicle more environmental and more effective.
Product Parameter
| Description | Unit | Parameter value | |
| Performance of mixing drum | Geometric volume | m³ | 16.8 |
| Max. diameter of drum | mm | 2280 | |
| Drum length | mm | 5596 | |
| Mounting tilt angle | ° | 13.5 | |
| Rotary speed | r/min | 0~14 | |
| Charging speed | m³/min | ≥3 | |
| Discharging speed | m³/min | ≥2 | |
| Residual ratio of discharging | % | <0.7 | |
| Range of slump | ㎝ | 5~21 | |
| Hydraulic system | Oil pump | World-famous brand | |
| Motor | World-famous brand | ||
| Speed reducer | World-famous brand | ||
| Hydraulic circuit | Closed type | ||
| Water supply | Volume of water tank | L | 450 |
| Way of water supply | Air pressure | ||
| Overall machine | Chassis brand | XCMG | |
| Chassis model | NXG3250D5NCX | ||
| Steering wheel | Left steering wheel | ||
| Curb mass | ㎏ | 14600 | |
| Driving type | 6×4 | ||
| Wheelbase | mm | 3800+1350 | |
| PTO way | Flywheel PTO | ||
| Outline dimension | (L×W×H)mm | 9510×2500×3970 | |
| Engine | Model | WP10.350E53 | |
| Rated power | Kw/r/min | 257 | |
| Displacement | L | 9.726 | |
| Emission standard | Euro V | ||

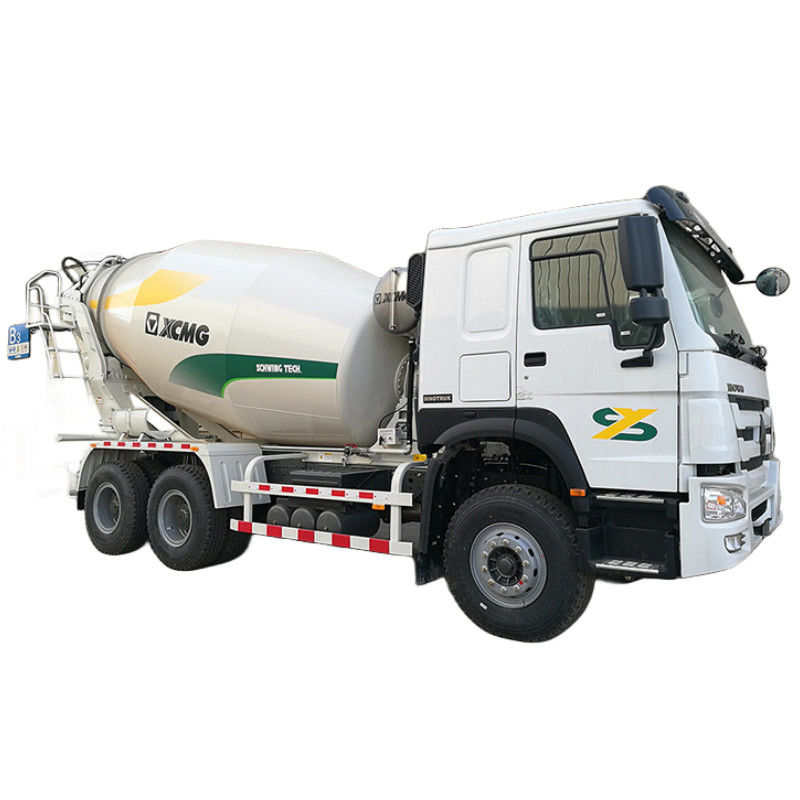

Product Photos
