Concrete Mixer Truck
>
|
| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | G04K |
Product Parameter
| Catagory | Item | Unit | Parameter |
| Overall Parameter | Model | G04K | |
| Curb weight | kg | 6905 | |
| Max.total weight | kg | 16000 | |
| Outline dimension | (L×W×H) mm | 7270×2280×3345 | |
| Chassis | Chassis brand | XCMG | |
| Chassis model | NXG3160D3AZAX | ||
| Steering position | LHD | ||
| Driving type | 4×2 | ||
| Wheel base | mm | 3800 | |
| Tire | 10.00R20 | ||
| Power take-off | Flywheel | ||
| Engine | Model | YC6J190-33 | |
| Max.power | kW | 140 | |
| Displacement | L | 6.494 | |
| Emission standard Euro Ⅲ | Euro Ⅲ | ||
| Drum system | Geometric volume | m³ | 7.7 |
| Agitating volume | m³ | 4 | |
| Max.diameter of drum | mm | 1980 | |
| Mixing drum length | mm | 3595 | |
| Slanting angle | ° | 15 | |
| Rotating speed | r/min | 0~14 | |
| Feeding speed | m³/min | ≥ 3 | |
| Discharge speed | m³/min | ≥ 2 | |
| Discharge residual rate | % | < 0.4 | |
| Slump scope | mm | 50~210 |

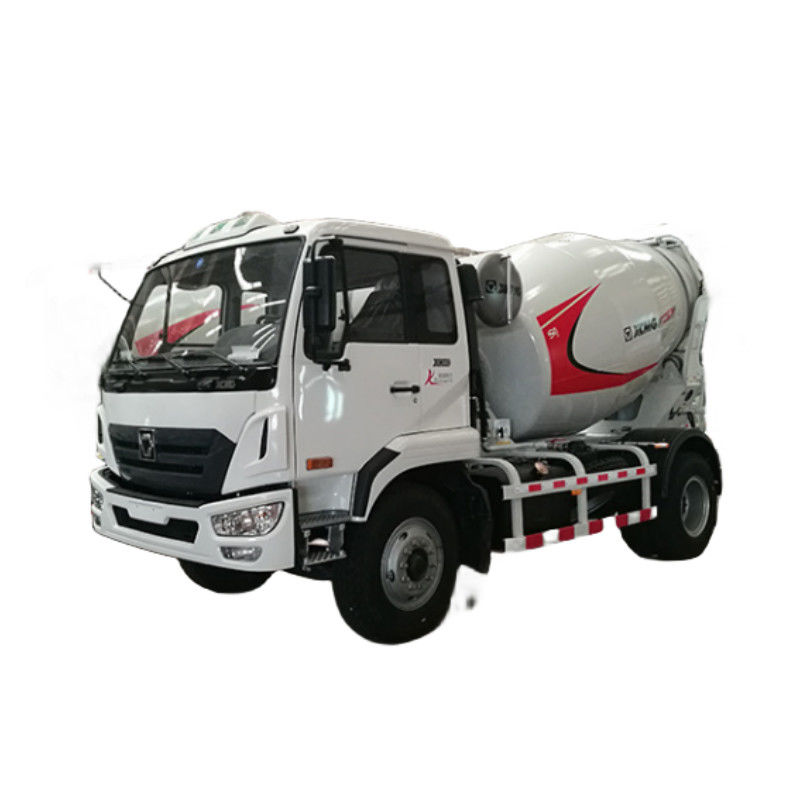

Product Photos
