| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | G06K |
The heavy-duty truck design concept is adopted, and the high-strength connecting bolts are arranged, and the connection is reliable and durable; the mixing drum is made of high-strength wear-resistant material, and the frame is made of high-strength steel, which has stronger carrying capacity and long service life;
The whole vehicle adopts no sub-frame structure, the center of gravity is 100mm lower than the ordinary car, and the driving is more stable and safe; the front suspension is equipped with a horizontal stabilizer bar, and the rear suspension adopts a unique main and secondary spring structure, and the anti-rolling ability is strong;
The front and rear axles adopt enlarged and widened brakes, and the braking distance of the whole vehicle is shorter; the synchronous design of the upper chassis and the simulation of the multi-function calculation of the upper loading and the chassis are supplemented by the reliability test of the prototype 10,000 km to ensure safety and reliability;
The national four-emission engine, 180 horsepower, strong power; sophisticated technical matching, fuel-saving and environmental protection; increased flow air filter, optimized intake resistance, filtration efficiency is 30% higher than ordinary mixers;
Product Parameter
| Category | Model | Unit | G06K |
| Performance of mixing drum | Geometric volume | m³ | 11.6 |
| Max. diameter of drum | mm | 2250 | |
| Drum length | mm | 4217 | |
| Mounting tilt angle | ° | 15 | |
| Rotary speed | r/min | 0~14 | |
| Charging speed | m³/min | ≥3 | |
| Discharging speed | m³/min | ≥2 | |
| Residual ratio of discharging | % | <0.7 | |
| Range of slump | cm | 5~21 | |
| Hydraulic system | Oil pump | World-famous brand | |
| Motor | World-famous brand | ||
| Speed reducer | World-famous brand | ||
| Hydraulic circuit | Closed type | ||
| Water supply | Volume of water tank | L | 450 |
| Way of water supply | Air pressure | ||
| Overall machine | Chassis brand | SinoTruck | |
| Chassis model | ZZ1255N3246B1 | ||
| Steering wheel | Left steering wheel | ||
| Curb mass | kg | 12250 | |
| Driving type | 6×4 | ||
| Wheelbase | mm | 3225+1350 | |
| PTO way | Flywheel PTO | ||
| Outline dimension | (L*W*H)mm | 8240*2500*3740 | |
| Engine | Model | WD615.69 | |
| Rated power | Kw/r/min | 247 | |
| Displacement | L | 9.726 | |
| Emission standard | II |

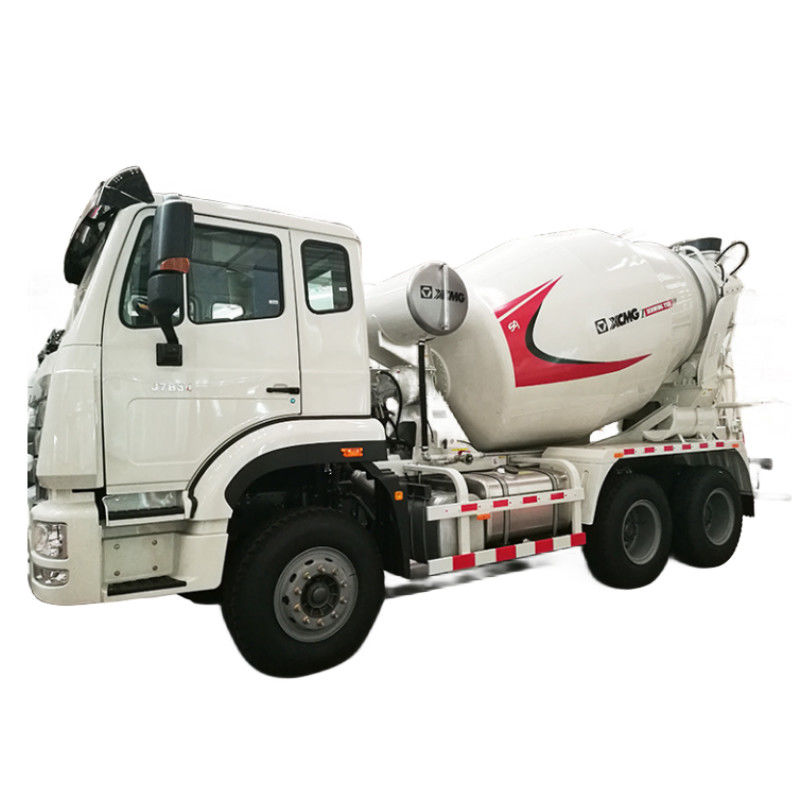

Product Photos
