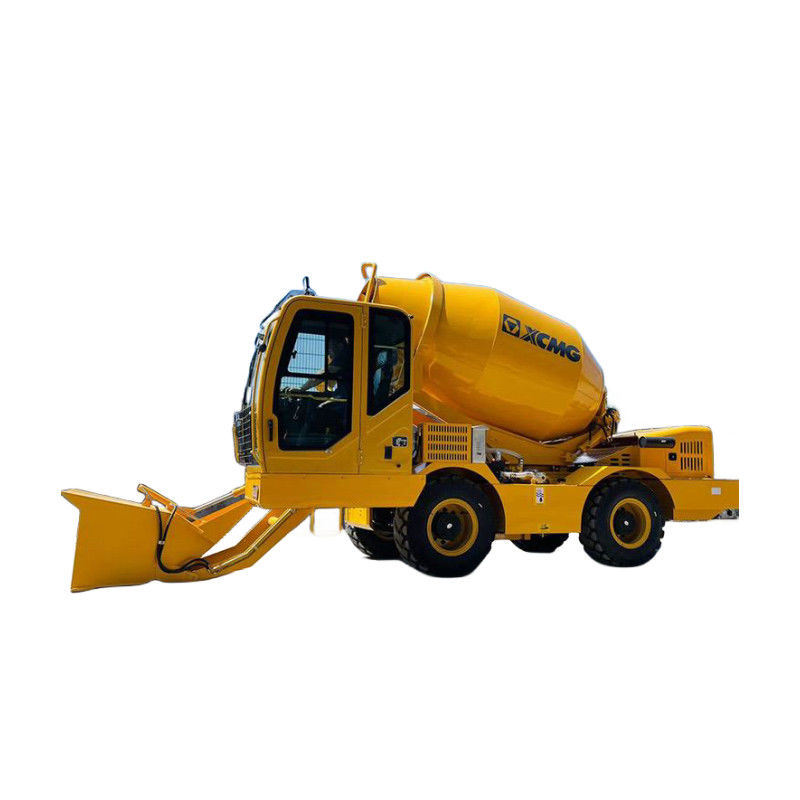

Concrete Mixer Truck
>
|
| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | SLM4000I |
Output per lot: 4.0 cubic metres.
Drum rotation: discharge port height 2.2 meters, tank horizontal rotation 270 tank can be raised and lowered.
ENGINE: Yuchai power ycd4p22t 125, diesel, water-cooled, 4 cylinders, 2400 RPM, rated power 91KW.
Drive mode: The engine is directly connected to the 315 torque converter through the drive shaft to the transmission with dual high and low speed through the drive shaft to the front and rear axles to achieve 4-wheel drive.
SPEED: dual altitude, low speed 0-25 kph, high speed 0-50 kph.
Product Parameter
| Model | SLM4000I |
| CAPACITY | 5 batches/h or 20 cubic/hour |
| Weight | 9500KG |
| Bucket(hydraulic gate) | 0.7 cubic |
| TIRE(steel wire high pressure vacuum tire) | 12R-22.5 |
| Power System | 24V |
| Length, width, height / wheelbase / Wheelbase | 7500mm * 2950mm * 3500mm * 2590mm * 2200mm |
| CLIMB | 45° |
| Turning radius | 5860 mm |
Product Photos
