Concrete Mixer Truck
>
|
| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | XSC4307 |

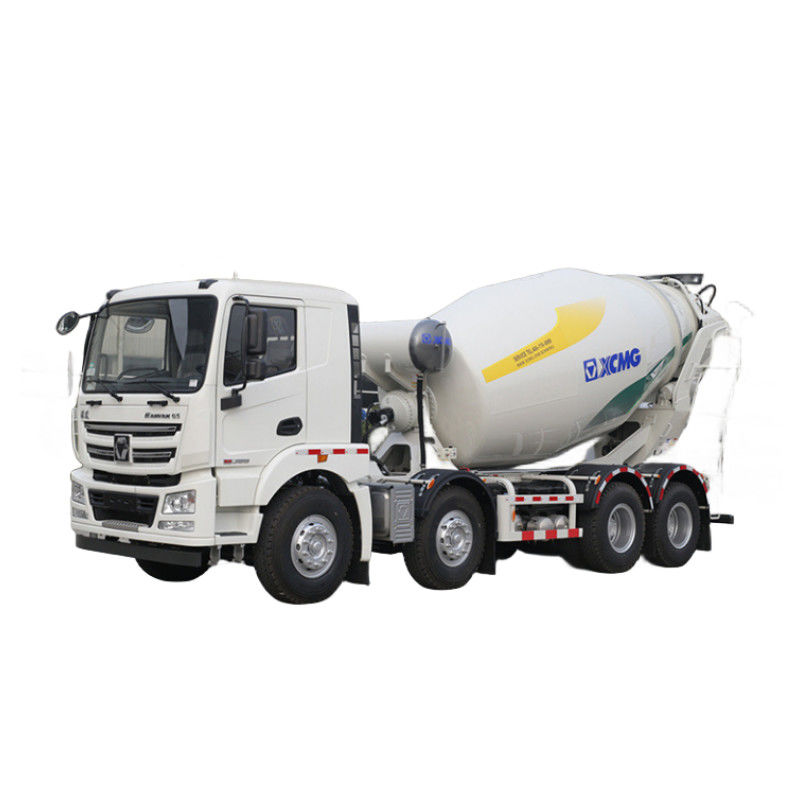

XCMG concrete mixer truck cement XSC4307 belongs to HANVAN series, equipped with specialty and acme originates from the top-level technology of SCHWING Germany.SCHWING’s blade design of variable height is used for mixing drum, together with optimized guide pipe, to provide stronger material sealing capacity and higher filling rate, thus improving the loading capacity of the tank by 6%;Low dip angle is designed, with the angle 5% lower than that of its counterparts and the stability improved by 18% under equivalent loading capacity.
Product Parameter
| CATEGORY | ITEM | UNIT | XSC4307 |
| Performance of mixing drum | Rev. | r/min | 0~14 |
| Charging speed | m³/min | ≥3 | |
| Discharging speed | m³/min | ≥2 | |
| Residual ratio of discharging | % | ＜0.4% | |
| Hydraulic system | Oil pump | World-famous brand | |
| Motor | World-famous brand | ||
| Speed reducer | World-famous brand | ||
| Water supply | Volume of water tank | L | 450 |
| Overall vehicle | Chassis model | ZZ1315N3063E1 | |
| Curb mass | Kg’ | 14670 | |
| Drive type | 8×4 | ||
| Wheel base | mm | 1800+3050+1350 | |
| Tire | 11.00R20 | ||
| PTO way | |||
| Outline dimensions | mm | 10215×2500×3965 | |
| Engine | Model | MC07.34-50 | |
| Rated power | kW | 248 | |
| Fuel | Diesel | ||
| Emission standard | China V |
