Concrete Mixer Truck
>
|
| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | HY-160 |

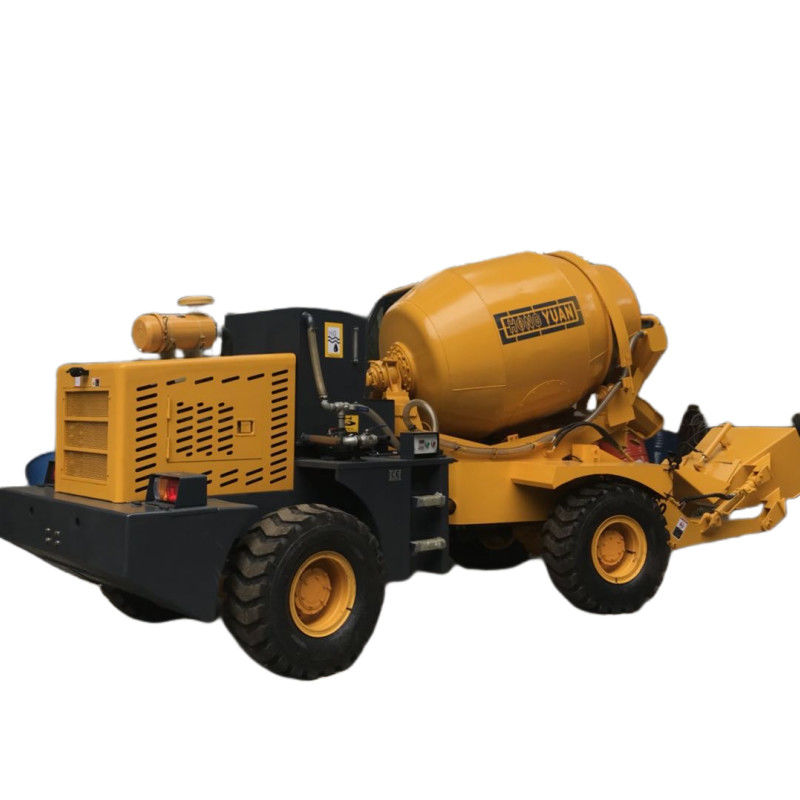

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
Product Parameter
| Name | Item | Spec | ||
| Overall machine | Net weight | 5500kg | ||
| Overall size | 6180*2270*2626mm(3434mm) | |||
| Transmission | Full Hydraulic | |||
| 4WD | ||||
| Brake | Air brake | |||
| Chassis | Off-road | |||
| Tread | 1600mm | |||
| Wheelbase | 2500mm | |||
| Loader bucket | Capacity | 0.4cbm | ||
| Control | Hydraulic | |||
| Tilt Angle | 30% | |||
| Speed | High speed | 0-25KW/H | ||
| Low speed | 0-9KW/H | |||
| Min turning radius | 6.2m | |||
| Tyre Model | 20.5/70-16 tyre | |||
| Engine | Type | Yunnei | 4102 | |
| Rated Power/RPM | 60KW | |||
| Cylinder | 4 | |||
| Starter | Electric | |||
| Cooling type | Water Cooling | |||
|
Maxing Drum
|
Drum full capacity | 2.2cbm | ||
| Drum work capacity | 1.6cbm | |||
| Bank angle | 16° | |||
| Chute | Swing Angle | ≥60° | ||
| Angle control | Hydraulic | |||
| Size | 100CM | |||
| Loader | Weight model | Computer control | ||
| Concrete standard | C15.C20.C25.C30 | |||
| Accuracy | Cement | ≤±2%/time | ||
| Relative error | ≤±3%/time | |||
| Water | ≤±1%/time | |||
| Additive | ≤±1%/time | |||
| Admixture | ≤±2%/time | |||
| Loader control | Hydraulic control 4 way stick | |||
Product Photos
