Concrete Mixer Truck
>
|
| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | HY-260 |
Product Parameter
| Name | Item | Spec | ||
| Overall machine | Net weight | 5800kg | ||
| Overall size | 6380*2470*2820mm(3630mm) | |||
| Transmission | Full Hydraulic | |||
| 4WD | ||||
| Brake | Air brake | |||
| Chassis | Off-road | |||
| Wheelbase | 2600mm | |||
| Loader bucket | Capacity | 0.3cbm | ||
| Control | Hydraulic | |||
| Tilt Angle | 30% | |||
| Speed | High speed | 0-25KM/H | ||
| Low speed | 0-9KM/H | |||
| Min turning radius | 3.3m/r | |||
| Tyre Model | 16/70-20 | |||
| Engine | Type | Yunnei | ||
| Rated Power/RPM | 76KW/2400RPM | |||
| Max Torque/RPM | 460N.W/1400RPM | |||
| Cylinder | 4 | |||
| Starter | Electric | |||
| Cooling type | Water Cooling | |||
|
Maxing Drum
|
Drum full capacity | 3.5cbm | ||
| Drum work capacity | 2.5cbm | |||
| Bank angle | 16° | |||
| Self rotation angle | 240° | |||
| Rotation speed | 21R/min | |||
| Chute | Swing Angle | ≥60° | ||
| Angle control | Hydraulic | |||
| Size | 110CM | |||
| Loader | Weight model | Computer control | ||
| Concrete standard | C15.C20.C25.C30 | |||
| Accuracy | Cement | ≤±2%/time | ||
| Relative error | ≤±3%/time | |||
| Water | ≤±1%/time | |||
| Additive | ≤±1%/time | |||
| Admixture | ≤±2%/time | |||
| Loader control | Hydraulic control 4 way stick | |||

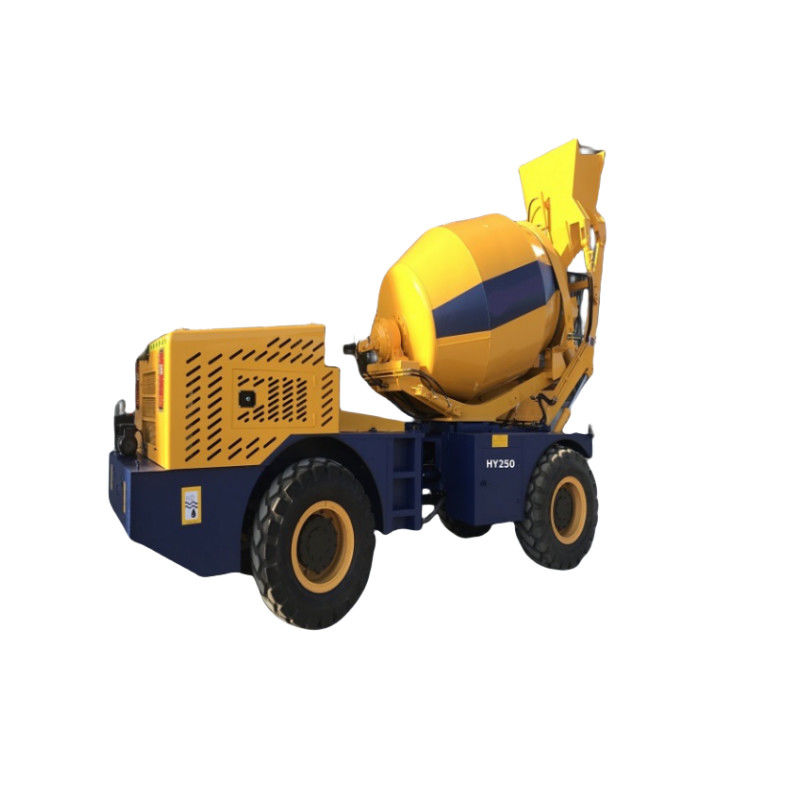

Product Photos
