Concrete Mixer Truck
>
|
| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | SLM4 |
1. Self-loading concrete mixer feature combines self-loading,weighting,mixing and discharging,it can maximize and improve the job efficiency and reduce the production cost and time.
2. Multi-function integration
Self loading concrete mixer SLM4 is a kind of equipment combining the functions of existing concrete transport truck and mixing station. It can complete loading, measuring, mixing and unloading, and can realize transportation and on-site construction.
3. Hydrostatic transmission
The vehicle is four-wheel drive, so that the mixer can also produce concrete in bad working conditions, to ensure the work efficiency.
Product Parameter
| Item | Unit | SLM4 |
| Engine | / | 82KW/2200rpm |
| Geometrical capacity of drum | m3 | 5.3 |
| Max.output | m3 | 4 |
| Transmission system | / | Hydrostatic; variable pump wih variable motor; four wheel dive |
| Vehicle speed | Km/h | 0~30 |
| Cab | / | Closed type; bucket movement operated by Joystick |
| Rotation angle of mixing drum | / | 255 |
| Electrical system | / | Generator(28V-55A); Accumulator(24V-180Ah) |
| Max. gradeability | % | 44 |
| Bucket | L | 600 |
| Water/fuel oil/hydraulic oil tank | L | 900/100/140 |
| Wheel base/wheel center distance | mm | 2600/1988 |
| Inner/outer turning radius | mm | 2120/4340 |
| Outline dimension-travelling state | mm | 6100*2425*4008 |
| Curb mass | Kg | 8800 |

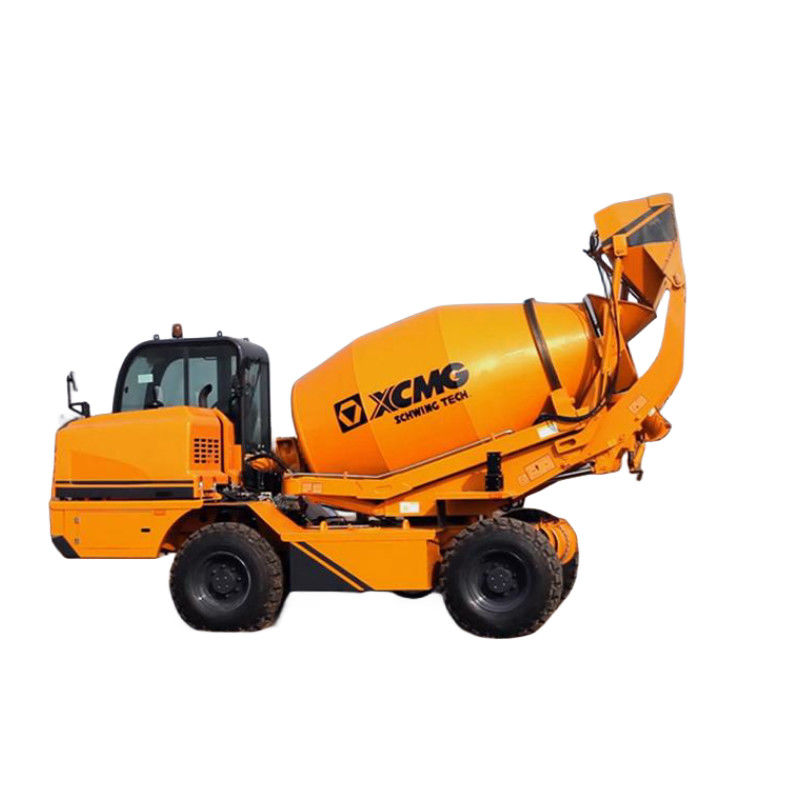

Product Photos
