| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | EBZ200R |

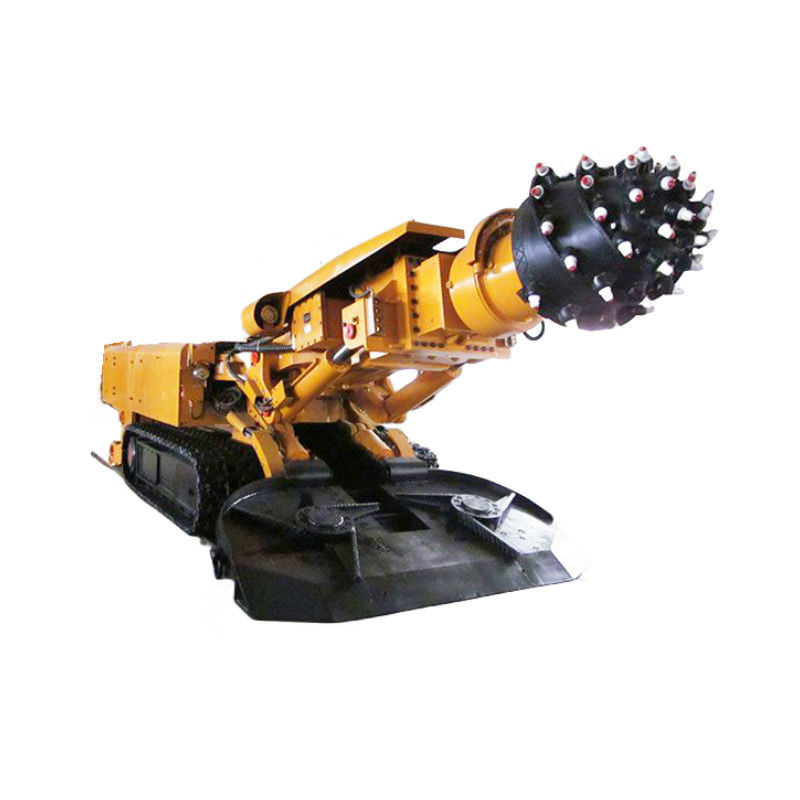

XCMG Factory EBZ200R Tunneling Boring Machine Roadheader With Competitive Price
Advantages and highlights:
1. Spraying system
Spraying system of EBZ200R roadheader include inside and outside spray systems, of which the front is after-pick spraying which is used to strength outside spraying, the latter is reasonable in design and equipped with leakage detection function.
2. First freighter
Straight structure is adopted for first freighter, which can achieve smooth lapping with hauler bed and transportation.
3. Traveling mechanism
The traveling mechanism is a high integration of internationally advanced motor and reducer, whose big output torque can adapt to operations with large dip angle. If there is limit for weight or total weight during transportation, it can be disassembled for transportation.
product Parameter
| Item | EBZ200R |
| Overall weight | 80000 kg |
| dinting undercut | 225 mm |
| Ground clearance of machine | 220 mm |
| Height of Range of positioning cutting | 4800 mm |
| Width of Range of positioning cutting | 6040 mm |
| Area of Range of positioning cutting | 29 m² |
| Gantry height | 400 mm |
| Compressure strength of coal petrography to be cut | ≤100/80 Mpa |
| Climbing capacity | ±18° |
| Travelling speed | 7 m/min |
| Min. turning radius | — |
| Grounding pressure | 0.15 Mpa |
| Gross power | 387 kW |
| Power of Cutting motor | 200/150 kW |
| Power of pumping stations motor | 132 kW |
| Supply voltage | AC1140V |
| Frequency of supply | 50Hz |
| Rotation speed of cutting head | 46/23 r/min |
| Loading capacity | Star wheel type/4.3 m³/min |
| Crawler width | 650 mm |
| Out. Width of crawlers | 2700 mm |
| Tensioning style | Cylinder tensioning and snap-gauge locking |
| Water pressure of outside spraying | ≥2.5 MPa |
| Water pressure of inside spraying | ≥3 MPa |
| Max. non-removable parts size | 3.68×1.39×1.48 m |
| Max. non-removable parts mass | 8500 kg |
Product Show
