| Place of Origin | CHINA |
| Brand Name | SDHIM |
| Certification | ISO9001 |
| Model Number | SDHIM370-9 |

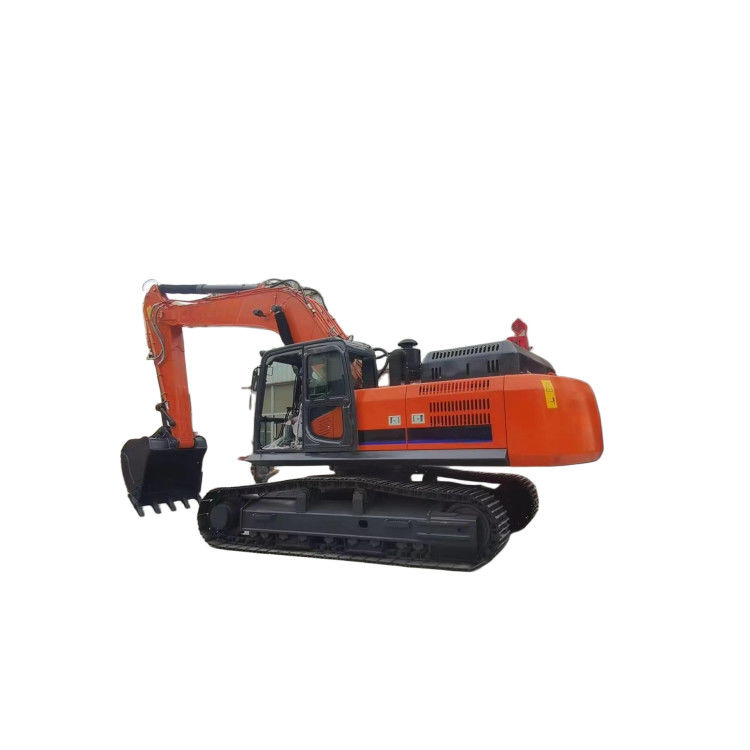

32 Ton Hydraulic Excavator ISUZU Engine 1.5 Cbm Bucket Digging Hydraulic Excavator
Product Parameters
| Weight | 32T |
| Bucket capacity | 1.5m3 |
| Engine rated power | 186kw |
| Swing speed | 10.1min-1 |
| Travel speed (high/low) | 5.8-3.4km/h |
| Ground specific pressure | 49kpa |
| Gradeability (%) | 70 |
| Digging force |
Standard 188KN/ Pressurized 199.9KN |
| Boom length | 6245mm |
| Arm length | 3100mm |
| Maximum digging depth | 6180mm |
| Maximum digging height | 9705mm |
| Maximum unloading height | 7024mm |
| Maximum digging radius | 10175mm |
| Minimum turning radius | 4019mm |
| a | Transport length | 10055mm |
| b | Transport arm height | 3697mm |
| c | Wheelbase | 4039mm |
| d | Radius of gyration platform end | 3188mm |
| e | Counter weight ground clearance | 1150mm |
| f | Track gauge | 2600mm |
| g | Total width of undercarriage | 3200mm |
| h | Width of upper structure | 3199mm |
| i | Width of track shoe | 600mm |
| j | Ground clearance | 506mm |
| k | Total length of travel mechanism | 4940mm |
| l | Cabin height | 818mm |
Detailed Photos
