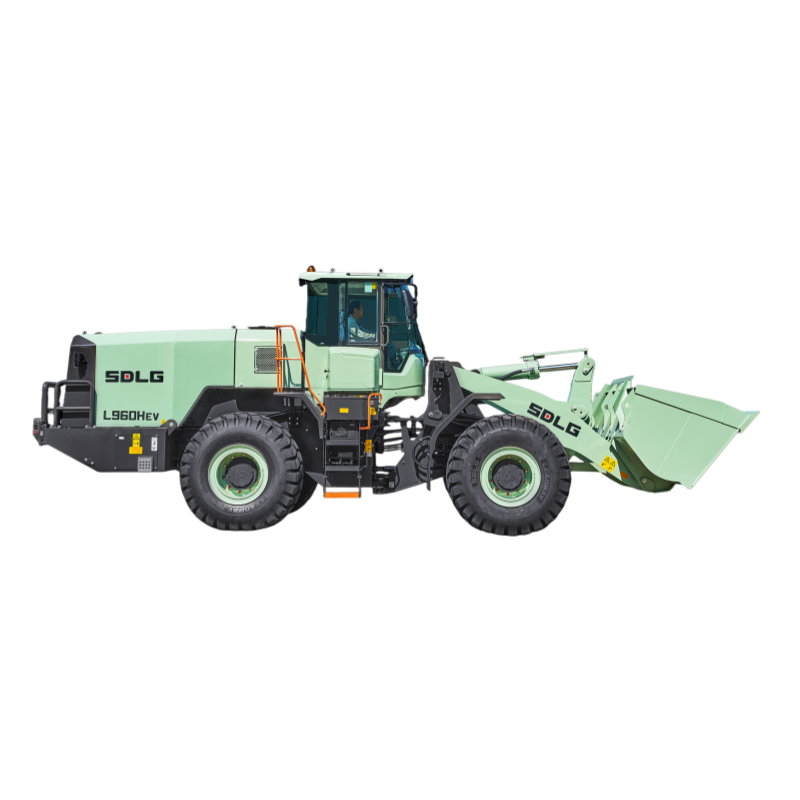

SDLG Lingong Lgmg L960hev EV Electric Wheel Loader 6t Load Capacity Pay Loader
Product Advantages
Zero-Emission Electric Power: Powered by a high-capacity 423 kWh battery, the L960HEV operates with zero tailpipe emissions, significantly reducing its environmental footprint and enabling work in indoor or environmentally sensitive areas.
Impressive Performance & Instant Torque: The electric drivetrain delivers a peak power of 400 kW, providing instant torque for strong breakout force (217 kN) and excellent tractive effort (170 kN), ensuring rapid and powerful loading cycles.
High Efficiency & Lower Operating Costs: Electric operation eliminates fuel costs and reduces maintenance requirements for the engine and exhaust systems. A fast DC charging capability and up to 8.5 hours of endurance support continuous operation.
Productive & Agile Design: A quick total cycle time of ≤9.6 seconds (lift, dump, lower) enhances productivity. Its compact dimensions and good maneuverability make it suitable for a variety of job sites.
Reliable & Proven Technology: Built on a robust platform with a planetary power-shift transmission and high-pressure hydraulic systems, ensuring the reliability and durability expected in demanding applications.
| Operating Weight (kg) | 20050 |
| Bucket Capacity (m³) | 2.7-5.0 |
| Rated Load (kg) | 6000 |
| Battery Type | LGNE |
| Battery Capacity(kWh) | 423 |
| Rated Power (kW) | 205 |
| Dumping Distance (mm) | 1340 |
| Working Pressure Of Working Device (MPa) | 21 |
| Charging Type | DC |
| Peak Power (kW) | 400 |
| Battery Voltage (V) | 614.4 |
| Battery Endurance Life (h) | 8.5h |
| Max.Dumping Height (mm) | 3320 |
| Length×Width×Height (mm) | 9280×2895×3460 |
| Wheel Base (mm) | 3450 |
