LW300KN XCMG Mini 3 Ton Front End Loader With CE

Place of Origin CHINA
Brand Name XCMG
Certification ISO9001
Model Number LW300KN
Product Details
Rated Operating Load:
3000kg
Bucket Capacity:
1.5~2.5m³
Machine Weight:
10900±200kg
Tread:
1850mm
Tyre Size:
17.5-25-12PR
Engine Model:
WP6G125E201
Emission Standards:
Emission 2
Fuel Tank:
170L
Hydraulic Tank:
175L
Highlight:

3 Ton Front End Loader

,

XCMG Front End Loader

,

Mini small front end loader

Product Description

XCMG Mini Wheel Loader LW300KN 3 Ton Front End Loader With CE Certificate

Product Features of loader

  • The perfect combination between energy-conservation drive system and low speed energy-conservation engine builds the one and only 3t energy-conservation product in the industry, with the economy superior by >10% to the industry’s like products.
  • The transmission is applied with the optimal lubrication system design technology to thoroughly improve the industry’s difficulties of insufficient and non-uniform transmission lubrications and make the transmission life remarkably leading the industry.
  • With the application of the exclusive high strength single plate beam skeleton structure, the “load-carrying material ratio” is remarkably leading the industry products.
  • The extended wheelbase and the classic 3rd generation loader structure realize higher working capacity, smaller turning radius, and lower wear of rear wheels.



Product Parameters



Description

Unit

Parameter value

Rated operating load

kg

3000

Bucket capacity

1.5~2.5

Machine weight

kg

10900±200

Dump clearance at maximum lift

mm

2770~3260

Reach at maximum lift

mm

1010~1210

Wheel base

mm

2900

Tread

mm

1850

Height of hinge at maximum lift height

mm

3830

Working height(fully lifted)

mm

4870

Max.breakout force

kN

130

Max.horse power

kN

95

Hydraulic cycle time-raise

s

5.4

Total hydraulic cycle time

s

9.3

Min. turning radius over tyres

mm

5170

Articulation angle

°

38±1

Gradeability

°

28

Tyre size



17.5-25-12PR

Overall machine dimension L×W×H

mm

7245×2482×3320

Model



WP6G125E201

Emission standards



Emission 2

Rated Power/Speed

kW/rpm

92/2000

Fuel Tank

L

170

Hydraulic Tank

L

175

Travel Speed

km/h

12/38





Photo Show

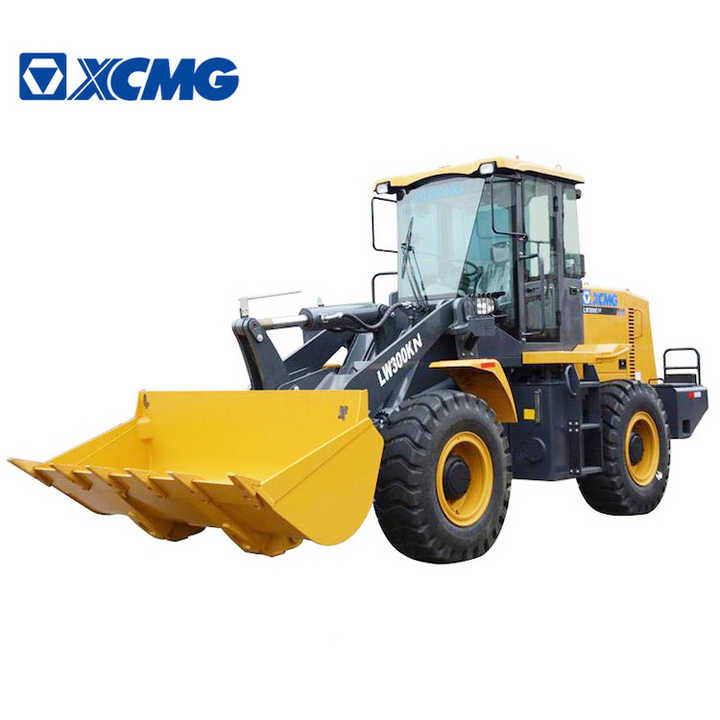

LW300KN XCMG Mini 3 Ton Front End Loader With CE 0



LW300KN XCMG Mini 3 Ton Front End Loader With CE 1



LW300KN XCMG Mini 3 Ton Front End Loader With CE 2
