| Place of Origin | CHINA |
| Brand Name | SDLG |
| Certification | ISO9001 |
| Model Number | Sr800h |

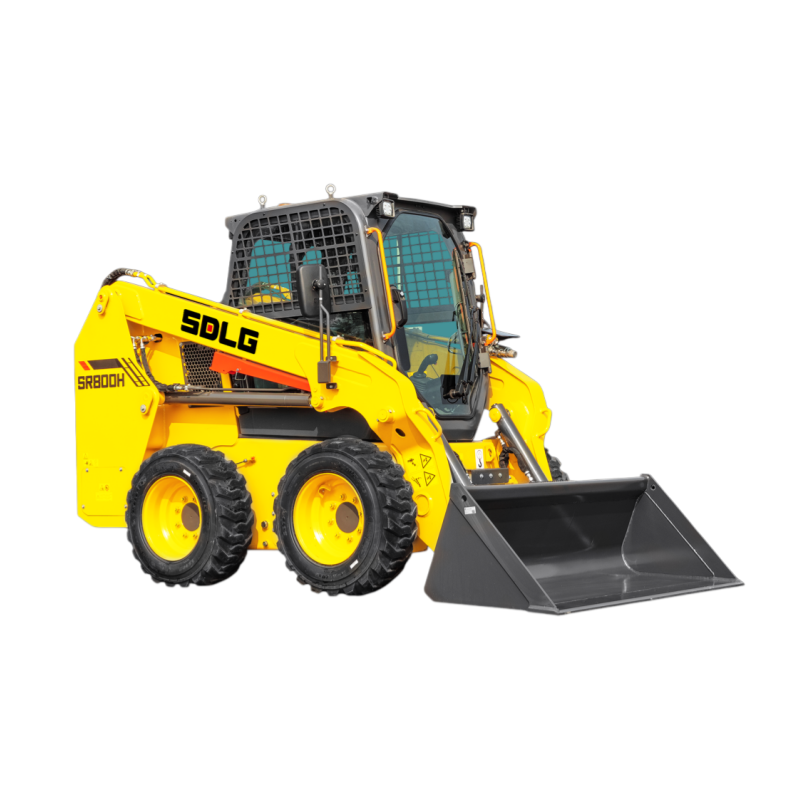

SDLG Lingong Skid Steer Loader Sr800h With 0.4m³ Bucket
Product Advantages
1. The SR800H is equipped with a reliable Weichai engine providing 36.8Kw power for optimal working performance.
2. Within the one-piece sealed ROPS cab you will find an air suspension seat that includes heat and ventilation, keyless start, and integrated keypads, this unit also provides all LED light, rotary warning light, USB interface, reading light, radio, storage box, lighter, mobile phone case, water cup holder.
3. Leading in class closed hydrostatic transmission system with 0-11.5Km/h infinitely spped control
4. Daily maintenance service points can be easily achieved through the tilt-up cab and rear door
5. This unit also provide a wide range of attachments such as sweeper,fork etc for different applications.
| Standard bucket capacity ,m³ | 0.4 |
| Rated loading capacity,Kg | 820 |
| Operating weight,Kg | 3160 |
| Engine model | WP3.2G50E433 |
| Rated power,kW (hp) | 36.8 (50) |
| Rated engine speed,rpm | 2500 |
| Displacement,ml | 3170 |
| Speed,km/h | 0~11.5 |
| Breakout force ,kN | ≥20 |
| Main relief set pressure,bar | 215 |
| Total cycling time | ≤7.9S |
| Fuel tank,L | 82 |
| L Overall length,mm | 3405 |
| W Overall width,mm | 1727 |
| H Height to top of cab,mm | 2000 |
| A Wheel base,mm | 1072 |
| B wheel track,mm | 1375 |
| C Reach at max. lift and dump,mm | 585 |
| D Dump height at max. lift,mm | 2390 |
| E Bucket hinge pin height at max. lift,mm | 3060 |
| F Departure angle,° | 26 |
| Max. dump angle,° | 40 |
| G Ground clearance,mm | 185 |
| H Turning radius (outsid of bucket),mm | 2070 |
