| Place of Origin | CHINA |
| Brand Name | SDHIM |
| Certification | ISO9001 |
| Model Number | SDHIM |

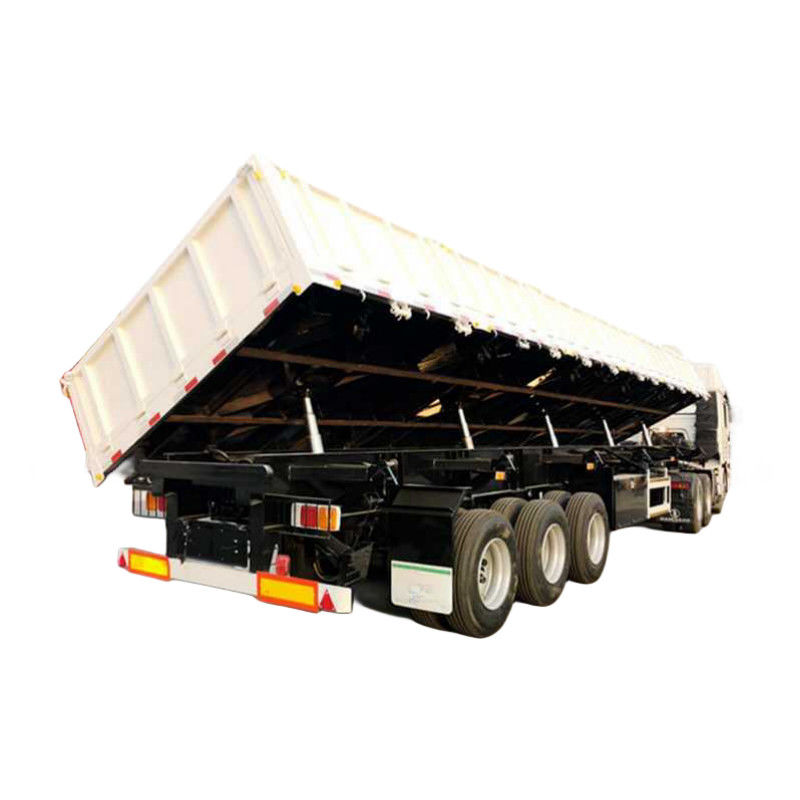

The Triaxle Side Tipping Trailer Truck is another type of tipping trailer, and it allows goods to be unloaded from the side. This side tipping trailer is designed to carry construction material, such as sand and stones as well as other materials such as coal. The side tipping design is meant to facilitate the offloading process.
The side tipping trailers’ min loading capacity is 50 tons, to ensure its durability, here adopt the high strength steel to build the trailer’s strong box.
The side tipping trailer uses a high-strength steel chassis designed and manufactured to withstand extreme loads. It is equipped with road train rated kingpin bolts and anti-skid plates as standard. We are good at installing air valves and hydraulics for any truck valve to provide the best solution for your application.
| Triaxle Side Tipping Trailer Truck Specifications | |
| Outside Dimension | 12500x2500x2200mm |
| Payload | Max.50T capacity |
| Lifting System | “5+1” oil cylinder |
| Main Beam | Q345B carbon steel, ‘H” type |
| Frame Beam(Heavy duty) | Upper and lower plate is 14mm and 16mm, Double middle is 8 mm. Height is 500 mm |
| Box thickness | Bottom plate:8mm Side plate:6mm |
| Axle | 3 axles 13tons BPW or SF |
| Landing Gear | JOST brand |
| King Pin | 2.0 or 3.5 inch |
| Suspension | Mechanical suspension reinforced type |
| Leaf Spring(Strength) | 90mm(W)*16mm(T)*10 Layer |
| Tires | 12R22.5, 315/80R22.5 |
| Color/Logo | By customer demand |
