| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | XS163 |

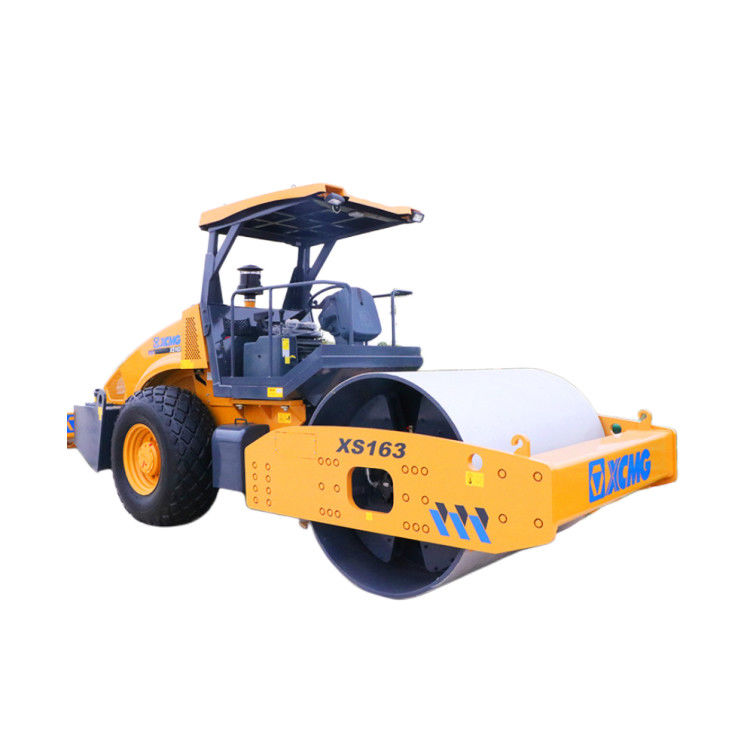

XCMG Single Steel Road Roller XS163 Roller Compactor Machine 16T 20T 30T
Product Advantage:
Simple operation:
The humanity instrument panel has a reasonable layout, all the control buttons are clear at a glance. Adopt the gearbox with synchronizer, which is easy to operate.
The special compactor drive axle has the function of preventing slipping, featuring strong traction.
Reliable and durable hydraulic system:
The standard configuration includes imported open gear pump and motor. The optional configuration includes closed hydraulic vibration system, imported piston pump, motor (16T, 18T). All those have a long service lifespan, supplying stable start-oscillation and oscillation stop and high compacting quality.
Energy-saving and environmentally friendly power:
Shanghai diesel engine 114 series water-cooled engine has low noise, meeting the emission standard of European I. The maintenance-free battery can be started easily and work smoothly in low temperature.
High efficient and reliable vibratory compacting system:
Unique drum structure features good rigidity and intensity. The bearing adopts short cylindrical bearing, featuring high rotary speed limit and strong bearing capacity. The left vibration chamber and right vibration chamber are symmetrical, avoiding the polarization of the drum.
The vibratory bearing can be lubricated when the compactor travels, which is simple and convenient, ensuring a quite low lubricating system failure rate.
Adopt the numerical control blanking, numerical control plate rolling, numerical control bender, and numerical control horizontal machining center to ensure the precision of the whole machining.
| Model | Unit | XS163J |
| Operating weight | kg | 16000 |
| Load applied on front drum | kg | 7700 |
| Static linear load | N/cm | 362 |
| Speed range | km/h | F/R |
| Gear I | km/h | 2.85/2.88 |
| Gear II | km/h | 5.08/5.02 |
| Gear III | km/h | 11.17/- |
| Theoretical gradeability | % | 30 |
| Min. outer turning radius | mm | 6500 |
| Steering angle | ° | ±30 |
| Swing angle | ° | ±11 |
| Vibration frequency | Hz | 28 |
| Nominal amplitude (high/low) | mm | 1.9/0.95 |
| Exiting force (high/low amplitude) | kN | 290/145 |
| Engine model | Shanghai Diesel Engine SC4H140.192 | |
| Type | / | |
| Max. power | kW | 103 |
| Hydraulic tank capacity | L | 170 |
| Fuel tank capacity | L | 310 |
Product Show:
