XCMG Machinery
>
|
| Place of Origin | CHINA |
| Brand Name | XCMG |
| Certification | ISO9001 |
| Model Number | XM1303K |

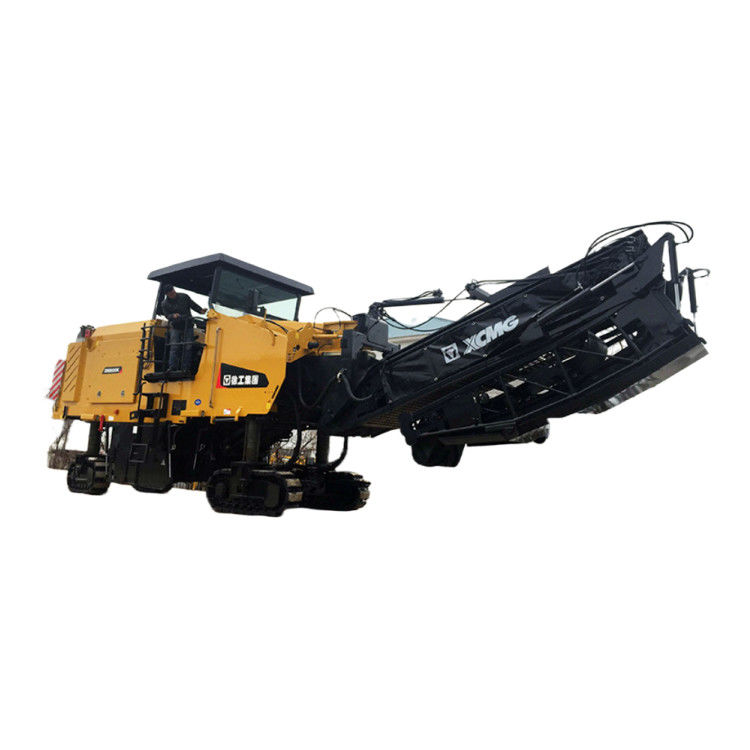

XCMG Milling Machine XM1303K 1.3m Width Road Maintenance Equipment
Performance Characteristics:
1.With higher working power, it can be used to effectively handle the working conditions with harder material and higher milling depth.
2.This engine features lower fuel consumption and better operation economy.
3.Three working speeds are provided to achieve more accurate matching between working speed and working load.
4.The milling drum is driven by mechanical belt to achieve higher drive efficiency than hydraulic drive.
5.Guarantee longer continuous working time and reduce the down time.
6.The intelligent sprinkling control technology.
Parameter:
| Item | Unit | XM1303K | |
| Milling drum | Milling drum Milling width | mm | 1300 |
| Milling depth | mm | 300 | |
| Tool spacing | mm | 15 | |
| Number of tools | 119 | ||
| Rotor diameter with tool | mm | 930 | |
| Engine | Model | SC9DK240G3 | |
| Cooling method Water cooling | Water cooling | ||
| Number of cylinders | 6 | ||
| Rated power/speed | kW | 177 | |
| Displacement | L | 8.8 | |
| Rated power consumption | L | 40 | |
| Comprehensive fuel consumption | L | 13.3 | |
| Emission Standard | National Ⅲ | ||
| Electrical system | V | 24 | |
| Box capacity | Box capacity Fuel tank | L | 450 |
| Hydraulic oil tank | L | 130 | |
| Water tank | L | 860 | |
| Driving performance | Driving performance Maximum operating speed | m/min | 45 |
| Maximum speed | km/h | 8 | |
| Theoretical climbing ability | % | 75 | |
| Ground clearance | mm | 180 | |
| Tire | Tire Tire Form Solid Rubber Tire | Solid Rubber Tire | |
| Front tire size | mm | 645×300 | |
| Rear tire size | mm | 645×300 | |
| Milling material conveying | Milling material conveyor Belt width | mm | 500 |
| Theoretical feeding capacity | m3/h | 127 | |
| Transport size | Shipping Size Host Size (L×W×H) | mm | 4837×2846×3745 |
| Host size (right leg swings into the frame) (L×W×H) | mm | 4837×2357×3745 | |
| Folding conveyor size | mm | 7300×1085×980 | |
| Machine weight | Machine Quality Work | kg | 17500 |
| Front axle load (under working quality) | kg | 6000 | |
| Rear axle load (under working quality) | kg | 11500 | |
Product Show:
