Wrecker Truck
>
|
| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | ISO9001 |
| Model Number | ZZ1047D |

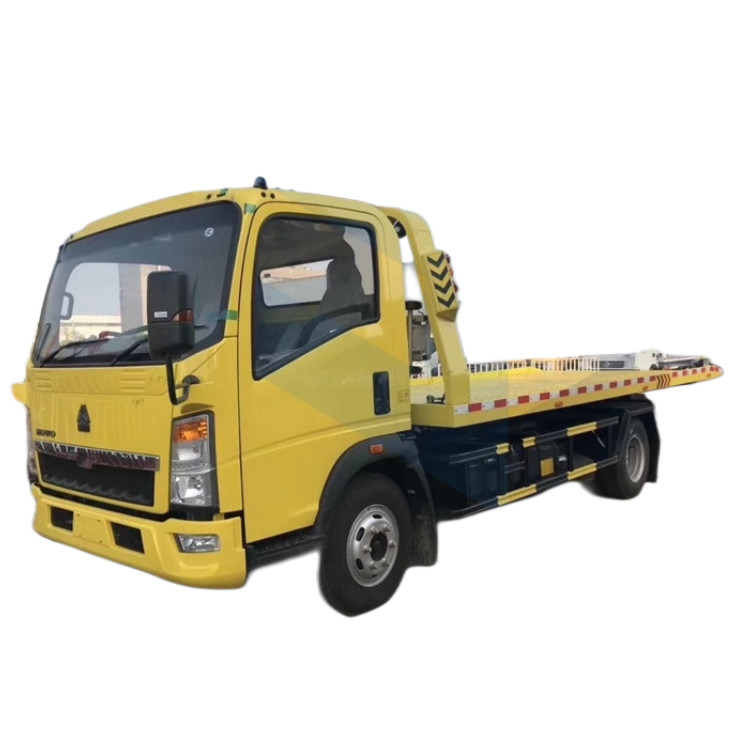

SINOTRUK HOWO Wrecker Truck Light Duty Rhd 4X2 35T Flatbed Wrecker Towing Truck
Product Parameter
| Vehicle Description | |
| Overall dimensions | 5980*2330*2350mm |
| GVW | 4495kg |
| Curb weight | 3590kg |
| Chassis brand | HOWO |
| Up-parts Specification | ||
| Towing type | Slide bed with wheel-lift | |
| Flatbed | Length | 4200mm |
| Loading capacity | 3T | |
| Winch | Quantity | 1 unit |
| Towing capacity | 4T | |
| Wire rope | 25m | |
| Under lifting | Fully extended capacity | 5500/2500 |
| Fully extracted capacity | 8800/4000 | |
| Standard configuration | Bilateral linkage operate device, fork, fork seat holding mechanism, drag mechanism, chain, auxiliary wheel, toolbox, binding belt, LED light, etc. | |
| Optional configuration | Back flip plate; retractable plate; intermediate extension; full landing | |
| Chassis Description | ||
| Chassis model | ZZ1047D | |
| Cab | RHD,2080 single row, with A/C | |
| Wheelbase | 3360mm | |
| Tire specification | 7.50R16 | |
| Tire quantity | 6+1 units | |
| Engine | Engine model | CY4102BZLQ |
| Emission level | Euro 3 | |
| Displacement/output | 3820ml/89kw | |
| Horse power | 120HP | |
| Gear box | Model | WLY6T46 |
| Number of gears | 6 forward gears & 1 reverse | |
| Axle | Front | 2.4T |
| Rear | 4.2T | |
| Suspension | Front | Leaf springs |
| Rear | Leaf springs | |
| Fuel tanker | Type | Steel tanker, with lockable cap |
| Capacity | 120L | |
Detailed Photos
