Wrecker Truck
>
|
|
| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | ISO9001 |
| Model Number | HW7/400/N46/8*4W |

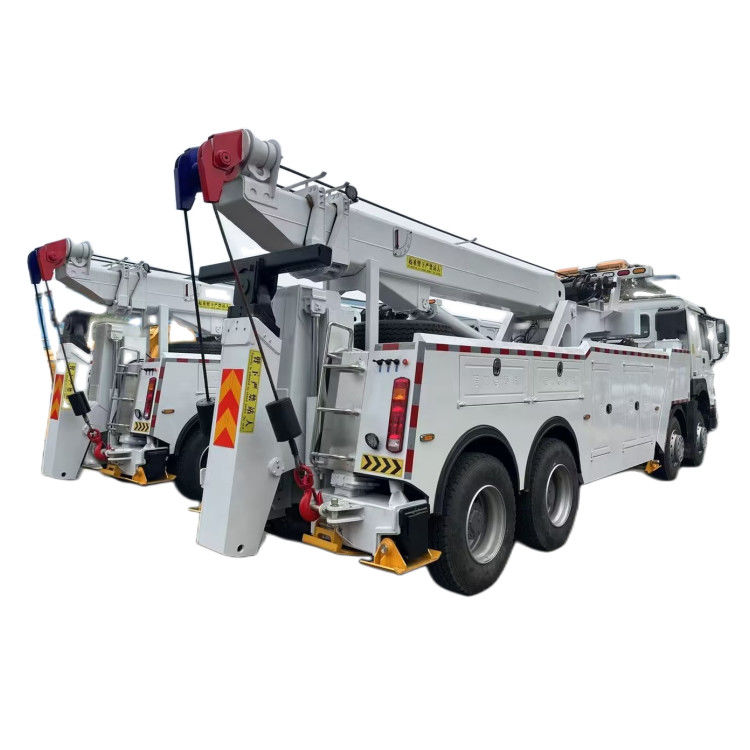

SINOTRUK HOWO Wrecker Truck 12 Wheeler 50T 60T HW7/400/N46 Rotary Road Rescue Emergency Road Rescue Truck
Product Parameter
| Model | HOWO 8X4 Truck Chassis HW7/400/N46/8*4W |
| Driving type | Left hand driving |
| Kerb weight ( kg) | 15360 |
| Loading capacity (kg) | 50,000kgs |
| Engine |
Make: SINOTRUK |
| Cab | HW76 long cab with one sleeper two seats, air conditioner, German VDO instrument, adjustable seat, two-speed wiper and glass washer, sun visor, safety belts, adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers with transverse stabilizer. |
| Transmission |
HW19710,SINOTRUK 10 forward&2 reverse gearbox, with HW50 PTO |
| Steering | ZF8118, German hydraulic steering with power assistance |
| Number of axle | 4 |
| Driving axle |
HC16 SINOTRUK high strengthen off road use heavy duty double driving axle |
| Axle-loading(kg) | 6500/7000/17500 |
| Front axle | HF9,HOWO new off road use 9T front axle, with drum braking system |
| Rear track(mm) | 1830 |
| Wheel base (mm) | 1800+4600+1350 |
| Number of spring leaf | 11/11/12 |
| Tires |
12.00R20 Radial tire |
| Approach/departure angle | 16/14(°) |
| Maximum speed(km/h) | 78 |
| Fuel Tank (L) | 300 |
| The Rotary crane | 50-ton 3-section U-shaped jib, 25-ton 3-section support arm, 2*25-ton winches, double-side control system, (standard with wireless remote control, excluding outrigger action), high-strength hydraulic steel pipe for oil pipe , Qiangtian hydraulic valve body, a set of heavy duty accessories, standard configuration of air source, power quick interface and 2 pieces of spiral gas pipe (12.5m), 1 piece of spiral cable (12.5m), counterweight box with counterweight block, excluding front Counterweight, excluding long row of warning lights, the rest are standard. |
| Overall size of the whole truck (mm) | 12000×2550×3800 |
Reference Photos
