Concrete Pump Truck
>
|
| Place of Origin | CHINA |
| Brand Name | SITRAK |
| Certification | CE |
| Model Number | ZLJ5440THBSF |

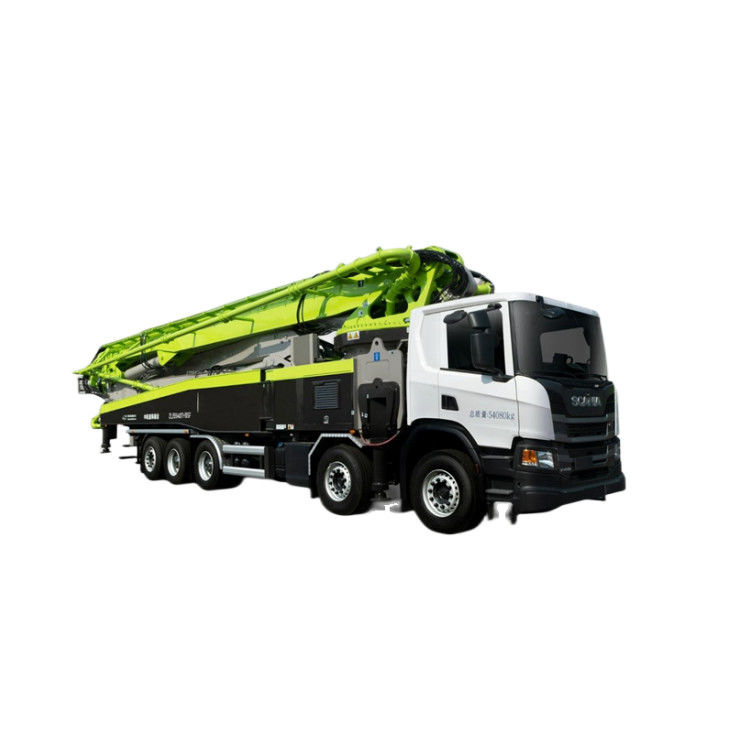

67m 70m 101Meter Scania 5axles Truck Mounted Concrete Pump Trucks
Product Description:
1.EquipΦ230mm cylinder, large displacement (125m3 / h) pumping system, the material absorption is more than 88%, the number of commutation with the same displacement is low, and the wearing parts life is long;
2.The pumping system adopts electronically controlled commutation. The pumping commutation is quick and accurate, for system impact is small, and the actual pumping efficiency is increased by more than 7% over the conventional hydraulically controlled commutation system.
3.Adopts industrial large pump truck integrated valve, the line is simple, the pressure loss is small, compared to the conventional valve energy saving 17%. Hydraulic systems are not prone to heat.
4.Equipped high and low pressure pumping switching function, can pump large displacement, high speed and high efficiency. When encountering poor materials, high-pressure pumping is not easy to block the pipe.
5.Equipped with full power and energy-saving dual pumping mode, the fuel consumption is lower. The engine speed can be adjusted in conjunction with the pumping volume.
6.Equipped with a dedicated central controller for construction machinery, a large-size high-definition display, and LCD remote control. The performance of the control system is stronger and the operation is more user-friendly.
7.Adopts imported multi-way valve. and the boom is particularly maneuverable, achieve man-machine integration, the boom can be immediately and steadily stopped. The end hose is positioned quickly and accurately.
Brief Introduction:
| Parameter | |
| Max. delivery volume(m3/h) | 180 |
| Max. outlet pressure of concrete(MPa) | 11.3 |
| Rated working pressure(MPa) | 42 |
| Concrete cylinder diameter * stroke(mm) | φ260x2100 |
| Rotation angle (°) | ±270° |
| Outrigger span(mm) | 12250x14400x12825 |
| Maximum cloth (height)(M) | 66.1 |
| Maximum cloth (radius)(M) | 60.9 |
| Maximum Cloth (Depth)(M) | 48.3 |
| pumping frequency(min-1) | 26 |
| structure type(/) | 67X-6RZ |
Product Show:
