Concrete Pump Truck
>
|
| Place of Origin | CHINA |
| Brand Name | ZOOMLION |
| Certification | CE |
| Model Number | ZLJ5442THBBE |

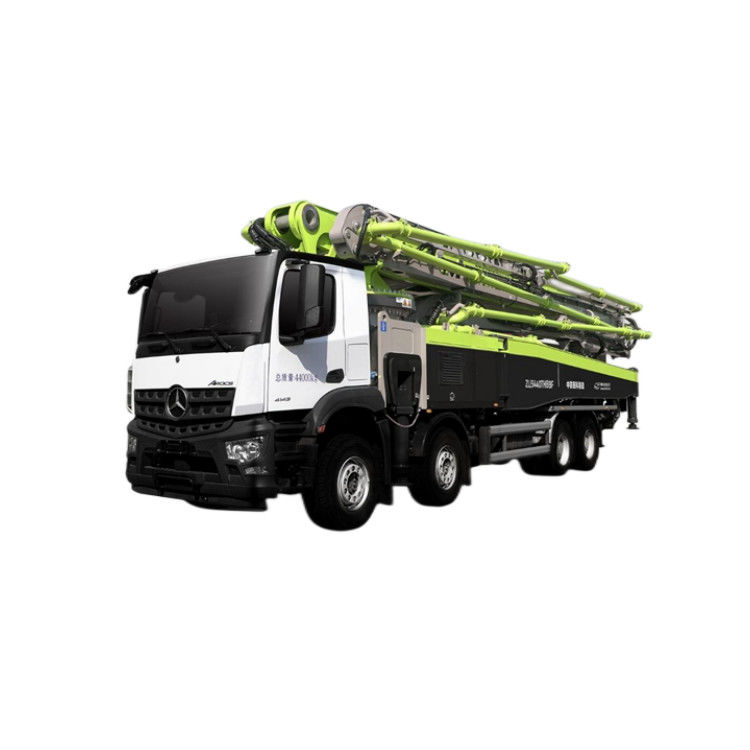

Benz 4Axles Chassis Concrete Equipment Truck Mounted 59M 62M Cement Concrete Pump Truck
Product Description:
59X-6RZ series truck mounted concrete pump is equipped with ultimately safe boom, lower structure of high rigidity, efficient pumping system of rock valve, hydraulic system of outstanding performance, intelligent control system and easy-wear parts with super-long service life.
1. The adoption of new multi-section boom design optimized by bionic technology effectively reduces placing blind zone and better adapts to placing in high-rise and narrow space.
2. On the basis of the design concept of high rigidity structure, simulative calculation and testing of full-work-condition loading make chassis structure deformation smaller and overall work stability higher.
3. Based on laser guide, coaxial assembly makes piston head's moving track more precise, with smaller resistance and higher efficiency.
4. Hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero-pollution.
Brief Introduction:
| Parameter | |
| Max. delivery volume(m3/h) | 180 |
| Max. outlet pressure of concrete(MPa) | 11.3 |
| Rated working pressure(MPa) | 42 |
| Concrete cylinder diameter * stroke(mm) | φ260x2100 |
| Rotation angle (°) | ±270° |
| Outrigger span(mm) | 9540x13370x10870 |
| Maximum cloth (height)(M) | 58.1 |
| Maximum cloth (radius)(M) | 52.9 |
| Maximum Cloth (Depth)(M) | 41.7 |
| Pumping frequency(min-1) | 26 |
| structure type(/) | 59X-6RZ |
Product Show:
