| Place of Origin | CHINA |
| Brand Name | FOTON |
| Certification | ISO9001 |
| Model Number | BJ3259DMPJB-A3 |

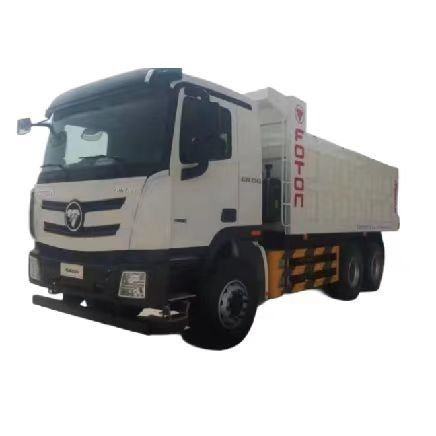

Foton 6x4 10wheeler Euro 3 Emission Tipper Dump Truck For Various Industries
Product advantage
1. Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
2. All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
3. Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
4. Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.
Product description
| Vehicle model | BJ3259DMPJB-A3 | |
| Cabin | Type | GTL-2490 |
| Carrying number | 2 | |
| Whole vehicle main dimensions | Dimensions (L×W×H)mm | 8175×2550×3580 |
| Driving type | 6×4 | |
| Wheel base(mm) | 3825+1350 | |
| Weight data | Chassis weight (kg) | 10270 |
| Persons in cab (persons) | 2 | |
| Engine | Model | ISGE3-350 |
| Fuel form | Diesel | |
| Emission | Euro3 | |
| Displacement (L) | 10.5 | |
| Rated Powe[kw/HP] | 80 | |
| Max power (kw/hp/rpm) | 257/350/1900 | |
| Max torque (Nm/rpm) | 1800/1000-1300 | |
| Gearbox | Model | HW19710(Q) |
| Brand | Sinotruk | |
| Clutch | Type | Φ430Pull type |
| Front axle | Type | 7.5T Drum brake |
| Rear axle | Type/Main reducetion ratio | 16T Benz/5.26 Drum brake |
| Steering gear | Model | AM90L-S |
| Braking system | Service brake | Dual circuit air brake |
| Parking brake | Spring energy storage air brake | |
| Wheels and tyre size | 12.00R20 | |
| Fuel tank (L) | 350L Aluminum | |
| Battery | 165Ah battery | |
| Optional configuration | Electric doors and windows + central locking + airbag seats (standard) + manual rearview mirror + MP3 + radio + USB + automatic air conditioning + desert air filter | |
