| Place of Origin | CHINA |
| Brand Name | Foton |
| Certification | ISO |
| Model Number | BJ1065VDJDA-F1 |

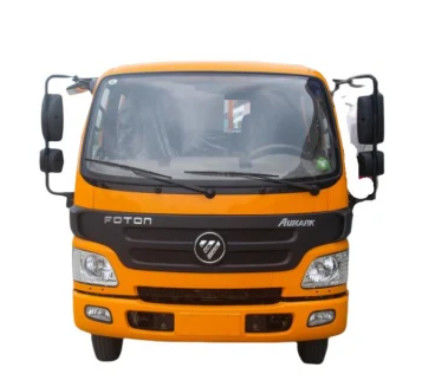

Hot-selling Foton 4X2 12 Tons Light Lorry Cargo Truck
Our advantage
The quality of the Foton light-truck is good, because the body materials of this car are more solid, the safety factor is higher, the engine power is stronger, the operation is more stable, and the fuel consumption is lower, and the overall cost performance of the car is higher.
Product description
| Vehicle model | BJ1065VDJDA-F1 | |
| Cabin | Left hand-single row-1880 | |
| Whole vehicle main dimensions | Dimensions (L×W×H)mm | Chassis:5995×2075×2315 flat:5995×2075×2315 |
| Driving type | 4×2 | |
| Wheel base(mm) | 3360 | |
| Wheel track (front/rear)mm | 1590/1485 | |
| Weight data | Chassis weight (kg) | 2300 |
| Persons in cab (persons) | 3 | |
| Gross vehicle weight(kg) | 7500 | |
| Whole vehicle main performance | Max. speed(km/h) | 100 |
| Engine | Model | BJ493ZLQV1 |
| Fuel form | Diesel | |
| Emission | Euro3 | |
| Displacement(L) | 2.771 | |
| Rated Powe[kw/HP] | 80 | |
| Max torque [N•m(r/min)] | 280 | |
| Gearbox | Model | 5S368 |
| Clutch | Type | φ265×φ175,Single piece dry diaphragm spring |
| Front axle | Type | 2.4T |
| Rear axle | Type/Main reducetion ratio | 4.5T/5.375 |
| Suspension | Front suspension/Leaf spring number | Non-independent suspension longitudinal leaf spring /3 |
| Rear suspension/Leaf spring number | Non-independent suspension longitudinal leaf spring /8+6 | |
| Steering gear | Model | Recirculating ball type, φ80 |
| braking system | Service brake |
Drum brake |
| Parking brake | Cut-off brakes | |
| Auxiliary brake | Exhaust brake | |
| Wheels and tyre size | 7.00R16 | |
| Fuel tank (L) | 80L | |
| Basic equipment | Manual doors and windows and rearview mirror/MP3 | |
| Optional configuration | Manual air conditioner / flatbed cargo box / shroud | |
| 4170×1960×400 | ||
More details
FAQ
1 . Q: What's your minimum order quantity?
A: One unit
2 . Q: What's your delivery time?
A: 30 days after received the deposit.
3 . Q: What's warranty time?
A: 12 months or 30,000 km from the date of shipment whichever comes first
