| Place of Origin | CHINA |
| Brand Name | SHACMAN |
| Certification | ISO9001 |
| Model Number | SX3255 |
Dump truck also called tipper, dumper truck which composed of chassis, hydraulic system, cargo body, PTO and so on. The hydraulic system could be HYVA or Chinese top, the material could be carbon steel or high-strengthen steel; the lifting type could be middle lifting or front lifting.
Dump is divided into 2 types which is rear tipper and side tipper. Rear tipper is more common which mainly used for transporting sand, stone, gravel, coal, earthwork and other construction materials.
Product Parameter
| Vehicle Description | ||
| Overall dimension | 10400*2550*3150mm | |
| GVW | 31000kg | |
| Curb weight | 15400kg | |
| Chassis brand | DONGFENG | |
| Traction type | 8*4, left hand drive | |
| Chassis Description | ||
| Cab | KC Sleeper cab,forward control type, low roof, all welded steel cab of tilt type, mechanical cab tilting, all floating and mechanical cab suspension, adjustable driver's seat, air conditioning system, central lock. | |
| Wheel base | 1850+4400+1400mm | |
| Tire specification | 12.00R20 or 315/80R22.5 | |
| Tire quantity | 12+1pcs | |
| Engine | Engine model | YUCHAI YC6K1344N |
| Emission standard | Euro 5 | |
| Exhaust/output | 13ml/324kw | |
| Horse power | 440hp | |
| Gear box | Model | 12JSD200 |
| Type | 12 forward gears& 2 reverse, synchronized | |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake. | |
| Axle | Front | 7T*2-DANA brand, Elliot type, I beam section |
| Rear | 22T*2Hub reduction, tandem axle, ratio 5.26 | |
| Suspension | Front | 10/10-Leaf spring |
| Rear | 13 | |
| Battery | Voltage | 24V |
| Capacity | 165A.h*2 | |
| Cylinder volume | Back | 220L*4 |
| Side | 120L*4 | |
| Up-parts Description | ||
| Cargo dimension | 7600*2300*980mm | |
| Material | Carbon steel | |
| Thickness | Side | 6mm |
| Bottom | 8mm | |
| Hydraulic system | Chinese brand | |
| Lifting style | Front lifting | |

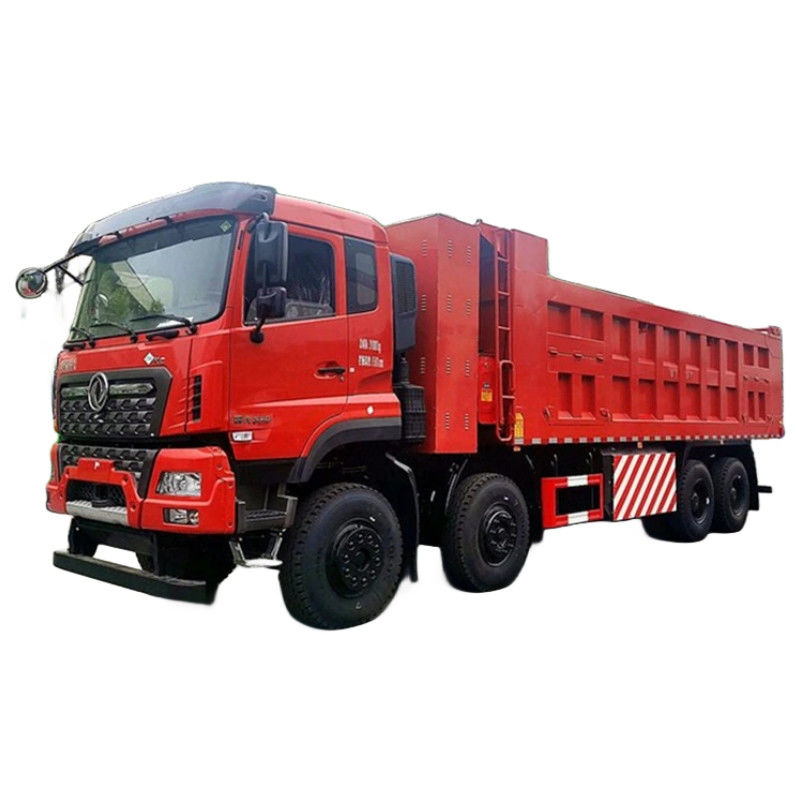

Detailed Photos
