Heavy Truck Tractor
>
|
|
| Place of Origin | CHINA |
| Brand Name | DONGFENG |
| Certification | ISO9001 |
| Model Number | DFL4251A8-T04E-F50-020B |

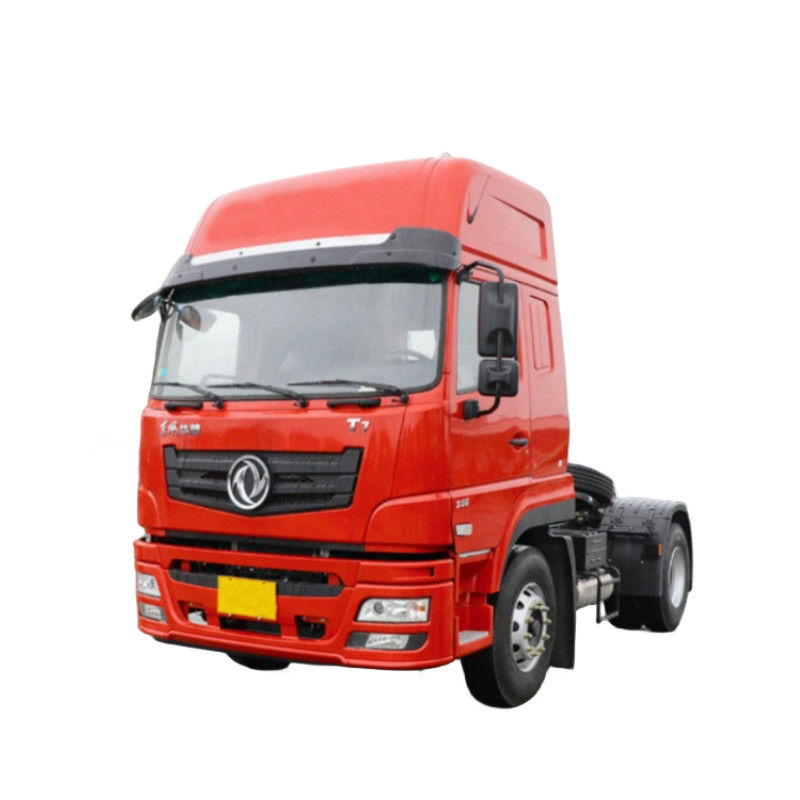

Tractor truck possesses the advantages of reliable structure ,strong load capability,superior power and stable performance.Its cab is beautiful,elegant,safe and comfortable.This tractor truck is quite suitable for highway long-distance transportation and highway transportation.In order to meet customers' different transport demands,We can provide different tractor head ,such as lightweight tractor ,heavy truck tractor and 4x2 trailer head truck.Clients are free to choose suitable tractor trucks according to specific transportation requirements.
Product Parameter
| Drive mode | 4×2 | |
| Engine | Model | Cummins C300 33 |
| Type | 6-cylinder in line, turbocharging, air cooling, inter cooling, electrical control diesel engine | |
| Max. power(Kw/rpm) | 221/2200 | |
| Max. torque(N.m/rpm) | 1125/2200 | |
| Displacement(ml) | 8300 | |
| Type of fuel | Diesel | |
| Compression ratio | 18:01 | |
| No. of valves | 2 | |
| Cab | D310W High ceiling | double berth |
| Capacity | 3 persons | |
| Gearbox | Type | Fast 9JS119T-B, F9+R1 |
| Clutch | Φ430mm | push-type diaphragm spring clutch |
| Frame Height×Width× Thickness(mm) | 300×90×(8+6) | |
| Frame width 940 (front ), Frame width 810 ( rear ) | ||
| No. of spring leaves | 8/11+3 | |
| Tyre | Size | 11.00R20 |
| Air conditioner | A/C | |
| Dimensions | Overall dimension (mm) | 5990 ×2490×3700 |
| Wheel base (mm) | 3500 | |
| Front/Rear tread(mm) | 1986/1860 | |
| App./Dep. angel (°) | 20/40 | |
| Performance | Max. speed(Km/h) | 90 |
| Max. gradeability(%) | 30 | |
| Min. turning diameter(m) | 15 | |
| Fuel consumption(L/100Km) | 35 | |
| Mass | Curb weight(Kg) | 6800 |
| G.V.W (Kg) | 18000 | |
| Trailer G.V.W(Kg) | 35000 | |
