Heavy Truck Tractor
>
|
|
| Place of Origin | CHINA |
| Brand Name | DONGFENG |
| Certification | ISO9001 |
| Model Number | DFL4251A8-T04E-F50-020B |

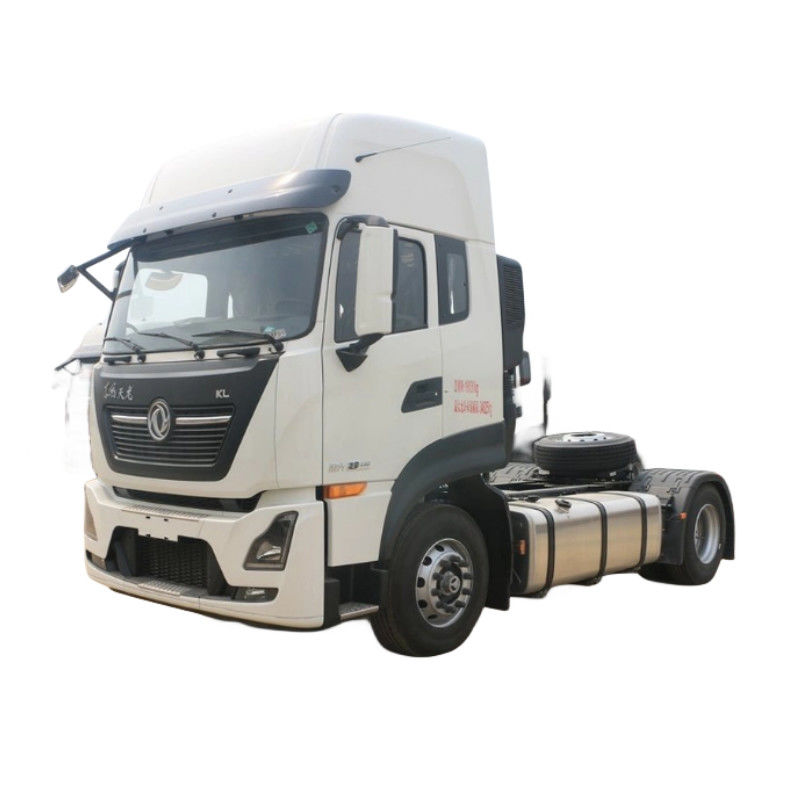

Tractor truck possesses the advantages of reliable structure ,strong load capability,superior power and stable performance.Its cab is beautiful,elegant,safe and comfortable.This tractor truck is quite suitable for highway long-distance transportation and highway transportation.In order to meet customers' different transport demands,We can provide different tractor head ,such as lightweight tractor ,heavy truck tractor and 6x4 trailer head truck.Clients are free to choose suitable tractor trucks according to specific transportation requirements.
Product Parameter
| Vehicle description | |||
| Overall dimension | 7045*2500*3030mm | ||
| GVW | 25000kg | ||
| Curb weight | 9580kg | ||
| Brand | DONGFENG | ||
| Traction type | 6*4, left hand drive | ||
| Chassis description | |||
| Model | DFL4251A8-T04E-F50-020B | ||
| Cab | Sleeper cab, forward control type, low roof, all welded steel cab, electrical cab tilting, front and rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electrical windows, central lock. | ||
| Wheelbase | 3400+1350 | ||
| Tire specification | 11.00R20 | ||
| Tire quantity | 10+1 units | ||
| Engine | Engine model | L375 30 | |
| Emission level | Euro 2 | ||
| Displacement/output | 8900ml/276kw | ||
| Horse power | 375hp | ||
| Clutch | Type | China | |
| Plate's diameter | ¢430mm | ||
| Operation system | Hydraulic control with air booster, pulling | ||
| Gear box | Model | 12JS180TA DD | |
| Number of gears | 12 forward gears& 1 reverse ,synchronized | ||
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, engine brake, ABS. | ||
| Axle | Front | 5T-Elliot type, I beam section | |
| Rear | 13T*2-Single reduction ,tandem axle, with axle lock, ratio 4.11 | ||
| Suspension | Front | Leaf spring with shock absorber and stabilizer bar | |
| Rear | Leaf spring | ||
| Battery | Voltage | 24V | |
| Capacity | 165A.H*2 | ||
| Fuel tanker | Type | Steel fuel tank, with lockable cap | |
| Capacity | 400L | ||
