Heavy Truck Tractor
>
|
|
| Place of Origin | CHINA |
| Brand Name | SHACMAN |
| Certification | ISO9001 |
| Model Number | SX42584V324 |
Product Parameter

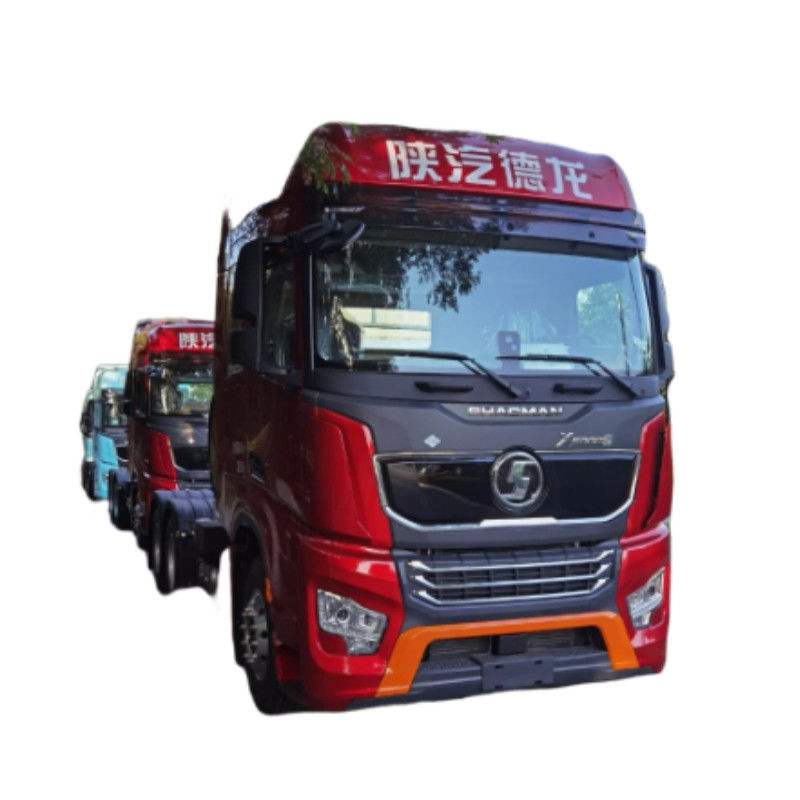

| /PRODUCT | SHACMAN X5000 TRACTOR TRUCK |
| (km)/LOAD DISTANCE | ≤200 |
| /ROAD TYPE | //PAVED ROAD/POTHOLE PAVEMENT |
| /DRIVE TYPE | 6 × 4 |
| /COLOR | /white /CUSTOMIZABLE |
| (T)/GCW | ≤5 |
| Maximum SPEED(km/h) | 120 |
| Economic speed(km/h) | 60-80 |
| Vechile Modle | SX425853324 |
| Engine | Weichai WP13.550E50 / Other horsepower engines available as an option |
| Emission | Euro II/ Different emission standards for engines with different original power |
| Displacement(L) | 11.526 |
| Rated Output Power(KW) | 250 |
| Maximum Torque(N*M) | 1350 |
| Transmission | 16JSDX-240T-B+QH50 |
| Clutch | 430 |
| Chasiss | 850*300(8+7) |
| Front Axle | MAN 9.5T |
| Rear Axle | 16T MAN Double Reduction CastingAxle,Ratio 5.92 |
| Tires | 12.00r20 Radial Tire(20 levels) |
| Front Suspension | Multi-leaf Springs |
| Rear Suspension | Multi-leaf Springs |
| Air Filter | Desert air filter |
| Fuel Type | Diesel |
| Fuel Tank (L) | 400L |
| Battery(Ah) | 165Ah Maintenanec-free Battery |
| Wheelbase(mm) | 3175+1400 |
| Cabin | Electronically Controlled Automatic Constant Temperature Air Conditioner |
| Domestic Steering Gear | |
| Electric window shaker | |
| Mental Bumper | |
| Reversing Buzzer | |
| Rear Axle Stabilizer Bar | |
| Four U-bolts | |
| Articulated Pedal | |
| Front Axle Rim Decoration Cover | |
| Front and rear headlight protection grid | |
| Domestic front lift 180 oil cylinder,field pattern upload | |
| Super version optional package one(steel bumper,reinforced leaf spring) | |
