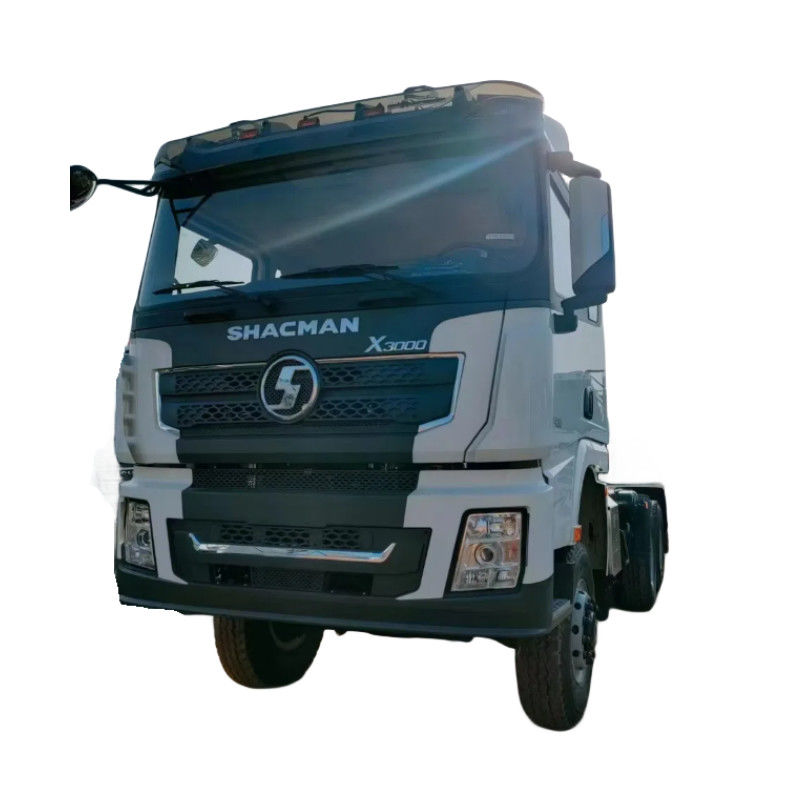

| Place of Origin | CHINA |
| Brand Name | SHACMAN |
| Certification | ISO9001 |
| Model Number | SX42584V324 |
Product Parameter
| MODEL | SX42584V324(W86-153-194-31-311) | |
| Driver position | Left Hand | |
| Cab | Medium length flat top | |
| Driving type | 6*4 | |
| Wheelbase | 3175+1400 | |
| Max. Speed(km/h) | 80km/h | |
| Engine | Brand | WEICHAI |
| Model | WP12.430E50 | |
| Emission Standard | EURO V | |
| Rated output power(PS) | 430HP/ 316KW | |
| Displacement (L) |
11.596L | |
| Transmission | Brand | FAST |
| Model | 12JSD200T-B | |
| Front axle | Brand | HANDE |
| Model | MAN 7.5T | |
| Rear axle | Brand | HANDE |
| Model | 13T MAN double reduction driving axle Speed ratio 4.266 |
|
| Clutch | ¢430 diaphragm clutch¢430 | |
| Frame | 850×300(8+7) | |
| Suspension | multiple leaf springs front and rear/four main spring + four bolts | |
| Fuel tank | 400LAluminum alloy | |
| Wheels and tires | 12.00R20(12+1) | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Auxiliary brake:Engine exhaust brake | ||
| Cabin | Hydraulic main seat, four-point hydraulic suspension cab, normal mirrors, electronically controlled automatic thermostatic air conditioning, electric window crank, manual rollover, oil bath air filter, metal bumpers, oil sump protection, front and rear headlight protection grilles, two-stage pedals, water tank protection grilles, one additional long-life coarse filter, 165Ah maintenance battery, SHACMAN logo, full English logo | |
