Tanker Truck
>
|
|
| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | ISO9001 |
| Model Number | ZZ1167M4611B1 |

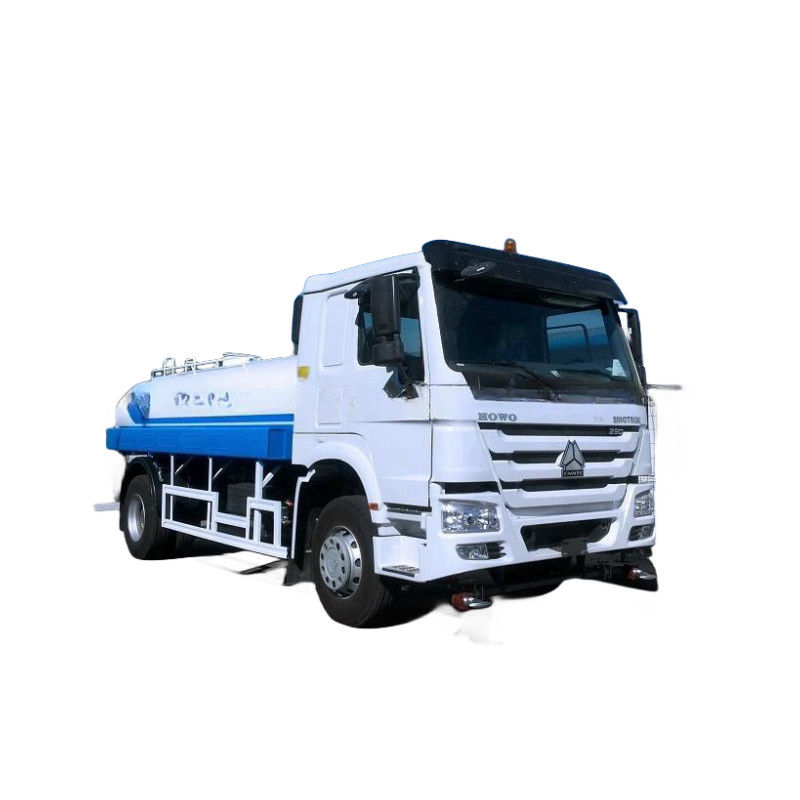

| SINOTRUK HOWO 4x2 water tank truck | |
| Chassis Model | ZZ1167M4611B1 (Left/ Right Hand Driving Type Optional) |
| Engine | Model: WD615.62, Euro II, 266HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
| Clutch | Single-plate dry diaphragm spring clutch, diameter 430mm,hydraulically operating with air assistance |
| Gearbox | SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO) |
| Front Axles | VGD95, 9500kg with drum brake system |
| Rear Axles | HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73 |
| Suspension | Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer | |
| Steering System | power steering, hydraulic steering with power assistance |
| Braking System | Front drum rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms |
| Tires | 12.00R20 (12.00R22.5, 315/80R22.5 optional), with one spare tyre |
| Fuel Tank Volume (L) | 400 |
| Dead Weight | 7900 |
| Gross Vehicle Weight (kg) | 16000 |
| Rated Loading Weight (kg) | 8100 |
| Overall Dimension (LxWxH) (mm) |
8545x2550x3400 |
| Wheelbase (mm) | 4600 |
| Min.Ground Clearance (mm) | 314 |
| Approach/Depart Angle(°) | 19/ (27/65) |
| Gradeability (%) | ≥50 |
| Min. Turning Diameter (m) | 15 |
| Tank volume (m³) | 10-13 |
| Tank material | Steel and aluminum |
| Remark (Engine Power Option) | 266;336HP; 371HP |
