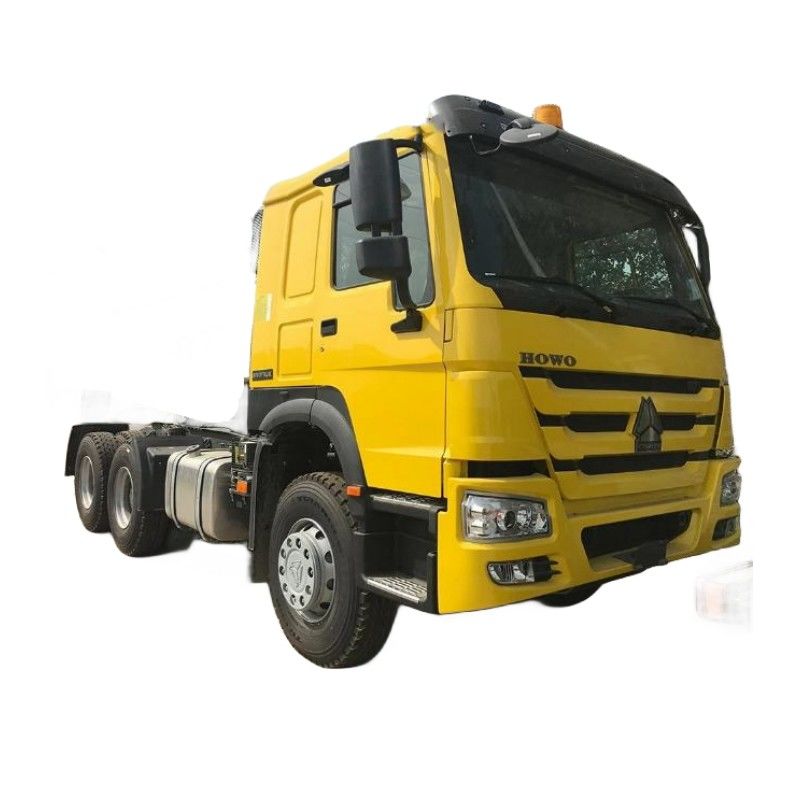

Heavy Truck Tractor
>
|
|
| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | ISO9001 |
| Model Number | ZZ4257S3241W |
Product Parameter
| Vehicle Specication | Model | ZZ4257S3241W | |
| Traction(6x4) | 6x4 | ||
| Power(HP) | 371 | ||
| Weight Parameter | Complete Vehicle Kerb Mass(kg) | 8800 | |
| Maximum authorized total Mass(kg) | 25000 | ||
| Permissible loading capacity(kg) | 34000 | ||
| Dimension Parameter | External Dimensions(mm) | Overall Length | 6820 |
| Width | 2520 | ||
| Height | 3310 | ||
| Wheelbase(mm) | 3225+1350 | ||
| Front/Rear overhang(mm) | 1540/845 | ||
| Performance Parameter | Maximum Speed(km/h) | 101 | |
| Fuel consumption(L/100km) | 40 | ||
| Maximum Gradeability(%) | 29 | ||
| Turning diameter(m) | 18.5 | ||
| Recommended Configuration | Engine | Made | CNHTC |
| Engine model | WD615.47,EuroII emission standard | ||
| Rated Power | 371hp(273Kw)at 2200rpm | ||
| Maximum Torque | 1500Nm at 1100-1600rpm | ||
| Fuel tank(L) | 400 | ||
| Transmission | HW19710 | ||
| Clutch(mm) | 430 | ||
| Front Axle | HF9 | ||
| Rear Axle | ST16 | ||
| Steering | Germany high technology power steering | ||
| Brakes | Dual circuit compressed air brake | ||
| Tyres | 12.00R20,10+1pcs | ||
| Cab | HOWO76 Standard cab,all-stell forward control,55ºhydraulically titable to the front,2-arm windscreen wiper system with three speeds,laminated windscreen with casted-in radio aerial,hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat ,with heating and ventilating system,exterior sun visor,adjustable roof flap ,stereo radio/cassette recorder,safety belts,adjustable steering wheel,air horn,with4-point support fully floating suspension and shock absorbers with transverse stabilizer | ||
