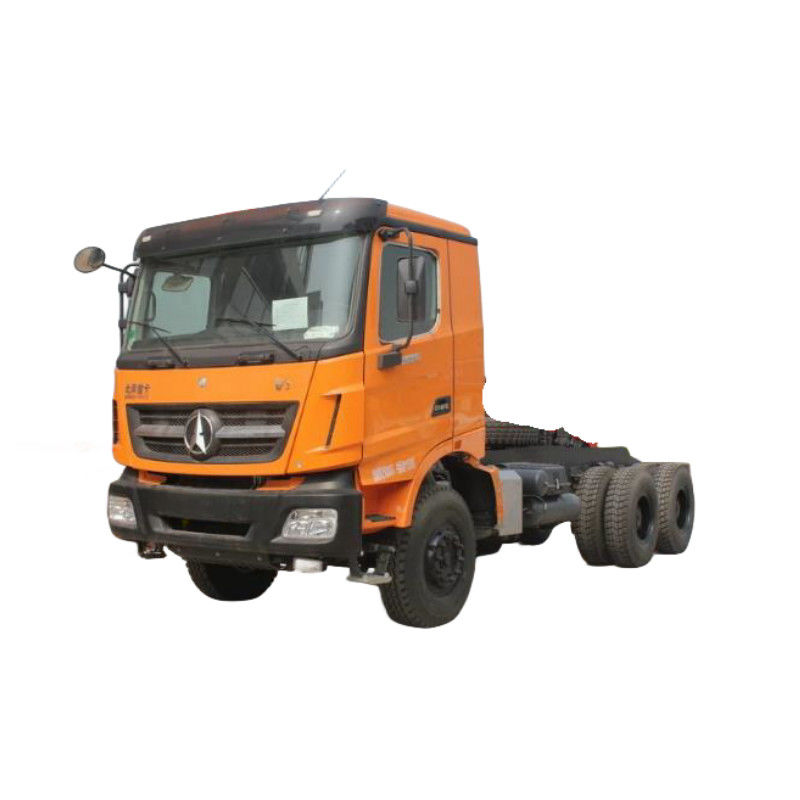

Heavy Truck Tractor
>
|
|
| Place of Origin | CHINA |
| Brand Name | BEIBEN |
| Certification | ISO9001 |
| Model Number | 2638GSZ |
Product Parameter
| Wheel base (mm) | 3450+1450 | |||
| Overall Dimension | 7135mmX2500mmX3600mm | |||
| Max loading | 80000kg | |||
| Curb weight (kg) | 9685 | |||
| Front overhang/rear overhang (mm) | 1515/875 | |||
| Approach angle/Departure angle | 26/64 | |||
| Max Speed:(Km/h) | ≤85 | |||
| Engine (WEICHAI Power) |
Model | WP10.380E32 | ||
| Fuel type | Diesel | |||
| Min rate of consuming fuel(g/(kw.h)) | 213g/kw.h | |||
| Rated Power / rotating(kw/r/min) | 276kw/2200rpm(380HP) | |||
| Emission | Euro II | |||
| Maximum Torque / rotating speed(n.m/(r/min) | 1500Nm/1300-1600rpm | |||
| Displacement(ml) | 9726 | |||
| Fuel tanker capacity (L) | 400L aluminium alloy | |||
| Clutch | Model | #430, Single dry frictional disc,Hydraulic boosting | ||
| Gearbox | Model | 12JS200T mechanical type,mechanical type,Based on EATON technology , 12 Forward speed gear,2 reverse gear. | ||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||
| Assistant brake | Engine exhaust brake | |||
| Park brake | Potential springs pressing on middle and rear wheels | |||
| Steering system | Model | Z15 whole circulation in ball type, hydraulic boosting. | ||
| Suspension System | Front Suspension | Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension,13pcs springs. | ||
| Rear Suspension | Non-free standing stabilization spring, stabilization suspension,13pcs springs | |||
| Frame | Fish belly shape, variable width, variable sections(Ben-z Technology) | |||
| Frame sectional dimension(mm) | 317x70x8.5+7+12mm | |||
| Front axle (Mercedes Benz Technology) | Double-shoe pneumatic brake,7.5 tons no-driving steering axle | |||
| Middle & Rear axle (Mercedes Benz Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13 tons double reduction driving axle,speed ratio 5.263 | |||
| Tire | 12.00R20 | |||
| Tire Quantity | 11 (10+1) (1 spare tire) | |||
| Electrical system | Battery | 2X12V/180Ah | ||
| Generator | 28V-70A | |||
| Starter | 5.58Kw/24V | |||
| Cab | Long cab high roof with single sleeper, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly |
|||
| Interior trimming: Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C. |
||||
| Exterior trimming: Metal bumper, two steps, new mirror. |
||||
| Fifth wheel | #90 single direction | |||
| Other specifications | Desert air filter element | |||
