| Place of Origin | CHINA |
| Brand Name | FAW |
| Certification | ISO9001 |
| Model Number | CA3250P66K24L2T1E |
> FAW chassis: No.1 in China, First Class in the World
> Optional for International brand HAVY hydraulic cylinder or China famous hydraulic cylinder
> T700 high tensible steel material, side thickness 6 mm and bottom thickness 8 mmThe front 13, back 14 thickened leaf springs, the strongest in the industry.
Product Parameter

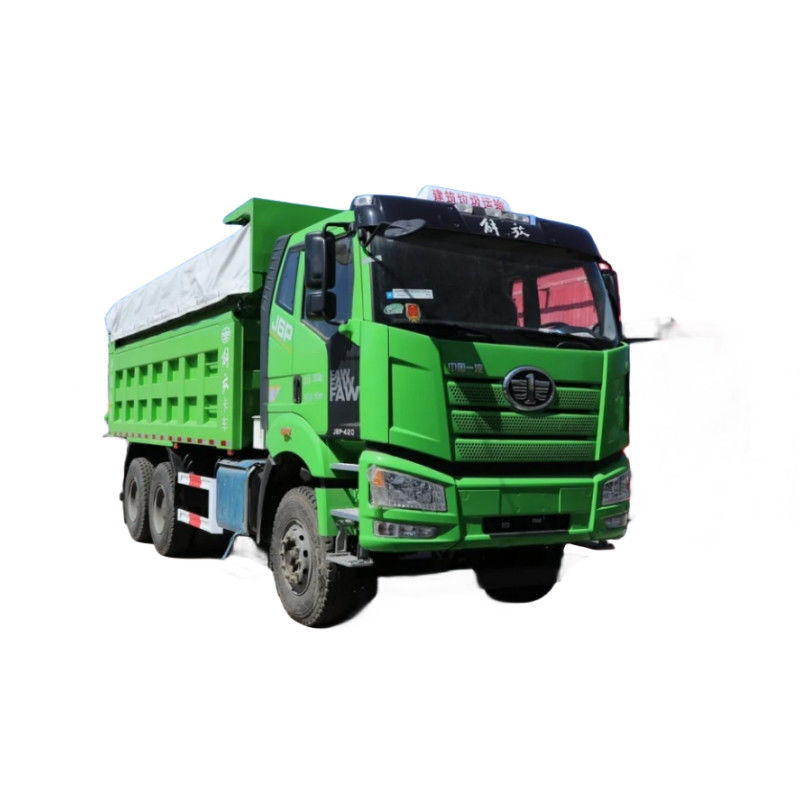

| Huayue FAW J6P 6x4 390hp Rear Tipping U Shape Dump Truck | |
| Model | CA3250P66K24L2T1E |
| Chassis brand | FAW (Also optional for HOWO, SHACMAN, I SUZU, DONGFENG, JAC, JMC, etc.) |
| Emission | Euro II. (Also optional for Euro 3, Euro 4, Euro 5, Euro 6) |
| Driving type | 6×4 |
| Loading Capacity | 20~25Tons. (Also optional for higher loading capacity) |
| Dead Weight | 17Tons |
| Cabin | J6P, LHD, fully fioating, 1 sleeper, AC, Electrical Window lifter, Mechanical spring driver's seat. (Also optional for RHD.) |
| Economical speed | 43-58 KM/h |
| Engine | Xichai Diesel Engine, 390HP CA6DM2-39E3F, 6 Cylinder, Direct Injection |
| Displacement | 11.04L |
| Maximum torque | 1750N.m |
| Maximum torque speed | 1300rpm |
| Transmission | CA10TAX190F, 10 Forward &2 Reverse |
| Clutch | Φ430 (Eaton) |
| Rear axle | CAR16T230W 16T°2, Casted axle housing, central single reduction with planetary wheel reduction (hub reduction) ratio:6.733 |
| Front axle | Q2055 front axle, 7T*1; Steering with double T-cross section beam, with drum brake system |
| Suspension | Front: 12 semi-elliptic leaf springs,2*16mm+9*18mm+1*10mm Rear:12*24mm leaf springs |
| Fuel Tank | 400L with locking fuel cap |
| Steering |
Hydraulic steering with power assistance Option:TRW steering box |
| Wheel base | 3800+1350MM |
| Tyres | 12.00R20/13R22.5 |
| Dump Box Material | T700 High Tensile steel |
| Dump Box Size | 5600*2300*1500mm / 19.32 m3 |
| Dump Box Shape | U Shape |
| Dump Box Thickness | Side 6mm, Bottom 8mm |
| Oil Cylinder | Front Tipping/φ180 |
