| Place of Origin | CHINA |
| Brand Name | FAW |
| Certification | ISO9001 |
| Model Number | CA3250P66K24LT1E6 |

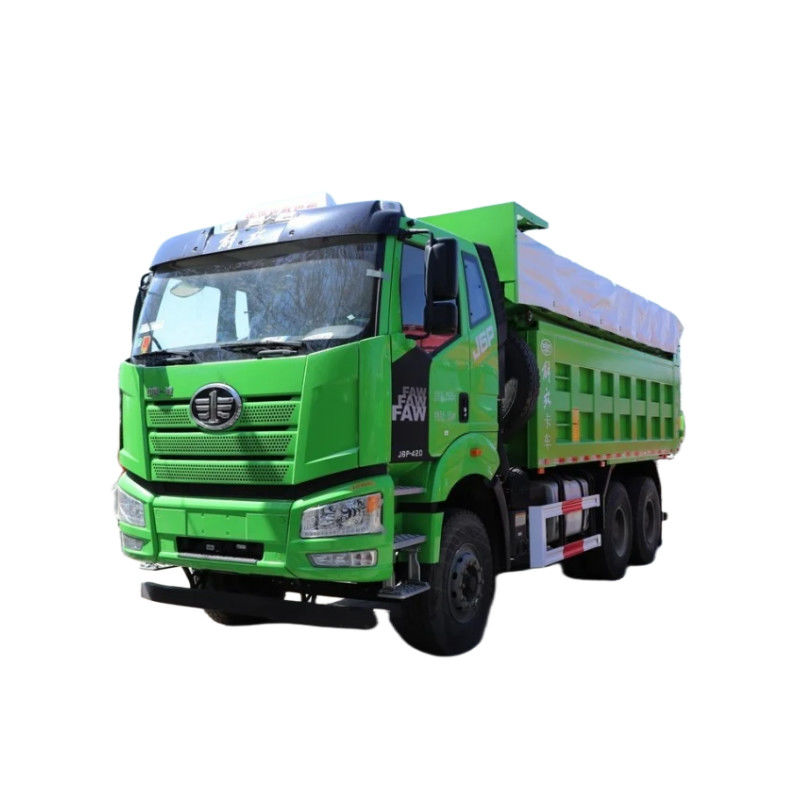

This Jiefang J6P has a maximum allowable towing weight of 40 tons and a curb weight of 8.87 tons. The vehicle is equipped with Xichai CA6DM2-46E61 overhead camshaft diesel engine. The engine has a maximum net power of 338kW and approximately 460 horsepower, which meets the National VI emission standards. In addition to this 460-horsepower engine, Jiefang J6P can also choose from a power range ranging from 380 to 560 horsepower, which can meet the needs of most users for vehicle power and economy.
Product Parameter
| Basic information | |||
| Model: | CA3250P66K24LT1E6 | Drive form: | 6X4 |
| Wheelbase: | 4050+1350mm | engine: | Xichai CA6DM2-42E6 |
| Gearbox: | JAW CA12TAX230M | Body length: | 8.7m |
| Body width: | 2550mm | Body height: | 3.4m |
| Front track: | 2048mm | Rear wheelbase: | 1878/1878mm |
| Vehicle weight: | 12500kg | Rated load: | 12370kg |
| Total mass: | 25000kg | Tonnage level: | Heavy Truck |
| Approach angle: | 24° | Departure angle: | 25° |
| Fuel type: | disel | Market segments: | Mining Engineering |
| engine model: | Xichai CA6DM2-42E6 | ||
| Number of cylinders: | 6 | ||
| Displacement: | 11.05L | Emission Standards: | GB VI |
| Maximum horsepower: | 420HP | Maximum output power: | 309kW |
| Maximum torque: | 2200N·m | Maximum torque speed: | 1000-1400rpm |
| Rated speed: | 1800rpm | Engine form: | Six-cylinder, in-line, supercharged and intercooled |
| Carton parameters | |||
| Carton length: | 5800 | Cargo box width: | 2300 |
| Cargo box height: | 1500 | Container form: | Self-unloading |
