| Place of Origin | CHINA |
| Brand Name | Beiben |
| Certification | ISO9001 |
| Model Number | Beiben NG80 |
Product Parameter

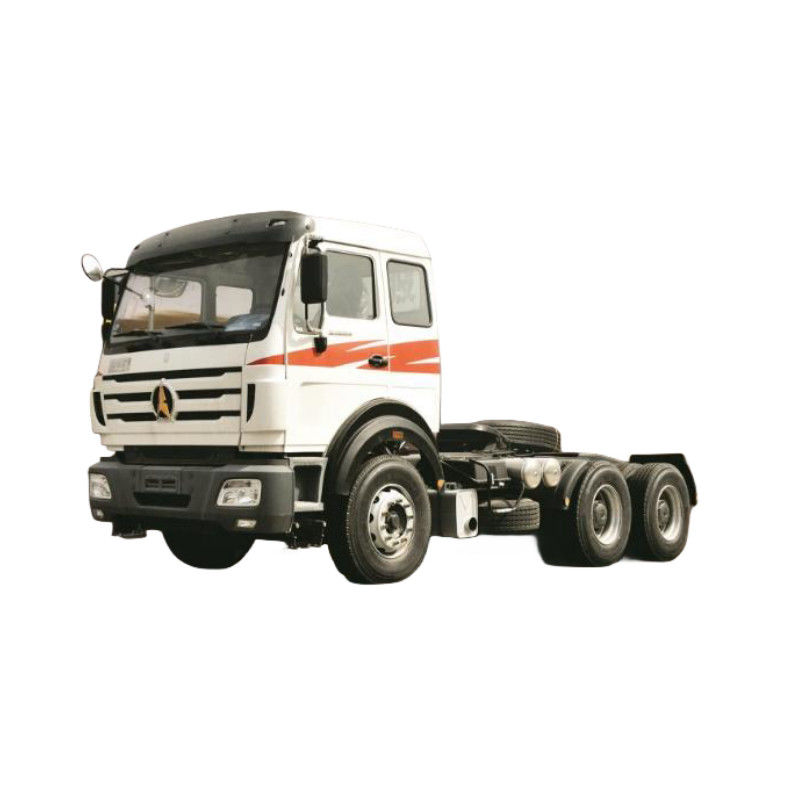

| 380hp 6x4 north benz used beiben tractor truck | |||
| Wheel base (mm) | 3450+1450 | ||
| Curb weight (kg) | 9200 | ||
| Gross towing trailer weight (kg) | Overloading up to 100 tons | ||
| Max Speed:(Km/h) | ≤90 | ||
| Dimension(Length*Width*Height) | 7150×2500×3200mm | ||
| Front overhang/rear overhang (mm) | 1410/740 | ||
| Approach angle/Departure angle | 26/64 | ||
| Engine(WEICHAI) | Model | WP12.420E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged | |
| Fuel type | Diesel | ||
| Emission | EUROIII | ||
| Displacement(L) | 11.596 | ||
| Fuel tanker capacity (L) | 400L Aluminum alloy | ||
| Clutch | Φ430, Diaphragm Spring,Hydraulic boosting | ||
| Gearbox | FAST 12JS200T, mechanical type,12 Forward speed gear. | ||
| Steering system | ZF8098 | ||
| Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake,7.5tons non-driving steering axle | ||
| Middle and Rear axle (Mercedes Benz technology) |
Middle axle: HD7/016DGS-13/5.263 Rear axle: HL7/015DS-13/5.263 |
||
| Tire | 12.00R20 radial tire 11 (10+1) | ||
Cab |
NG80B Long cab with single sleeper, Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; |
||
| Fifth wheel | #90 single direction | ||
