| Place of Origin | CHINA |
| Brand Name | SHACMAN |
| Certification | ISO9001 |
| Model Number | SX3315DU366 |
We are one of the best export company in China,We supply all kinds of trucks and constructiuon machinery, We are professional do this for about 10 years!
Please be assured that we are able to provide you with the best products and the best qualityservice!
Product Parameter
| Traction type | LHD | |||
| Drive System | 6*4 | |||
| Cabin | F3000 high cab, air conditioner ,two sleepers | |||
| Engine | Brand | WEICHAI | ||
| Model | WP12.380 EuroIII | |||
| Rated power | 371hp | |||
| Engine displacement | 9.726 liters | |||
| Gearbox | 9JS135 | |||
| Clutch | 430 Diaphragm type | |||
| Steering | Power steering | |||
| Axle | Front | 7.5 ton | ||
| Rear | 13ton double reduction axle, ratio:4.266 | |||
| Max. running speed (km/h) | 99 | |||
| Tire | NEW | |||
| Spring | 4/12,9/12,4/- | |||
| Fuel tank | 400L | |||
| Kerb weight (kg) | 9400 | |||
| Total mass (kg) | 25000 | |||
| Wheel base (mm) | 3175+1400 | |||
| Overhang (mm) (front/rear) | 1525/725 | |||
| Track (mm) (front/rear) | 2036/1800 | |||
| Approach / departureangle(°) | 20/66 | |||
| Overall Dimensions(L*W*H)(mm) | 6825*2490*3624 | |||
| 5th wheel | 90# | |||

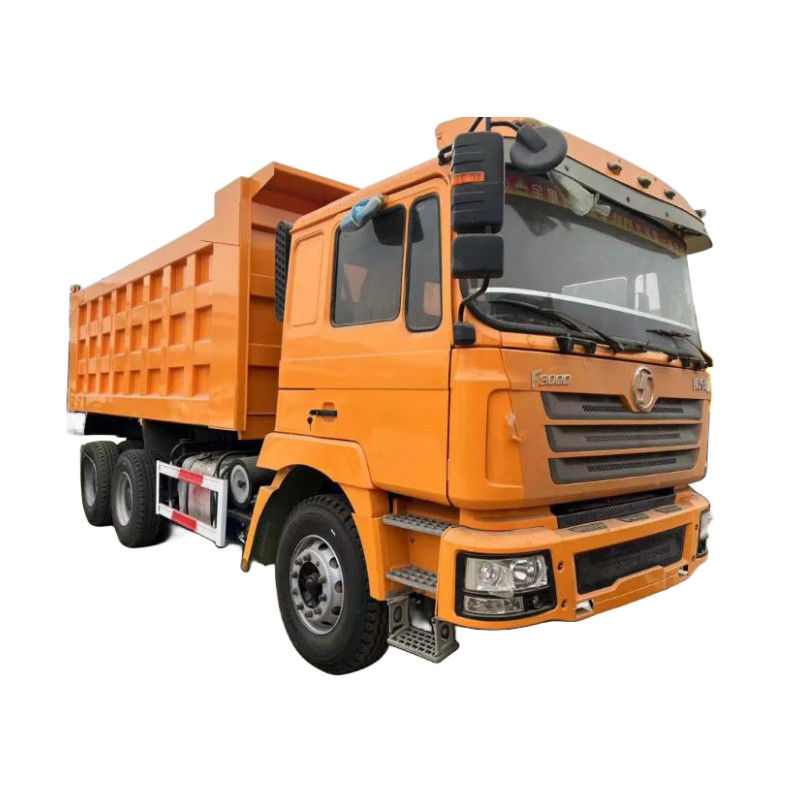

Detailed Photos
