| Place of Origin | CHINA |
| Brand Name | SHACMAN |
| Certification | ISO9001 |
| Model Number | SX3255DT384 |

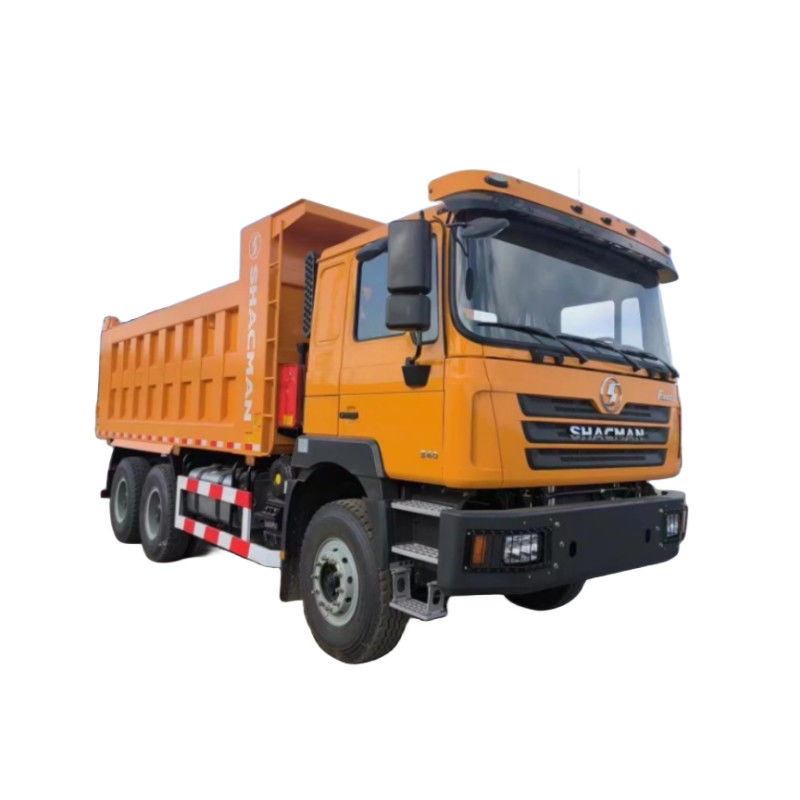

Experience the excellence of the Shaanxi 6x4 10 wheel 25 tons 30t heavy mining Shacman F3000 H3000 Tipper Dump Truck. Contact Beijing Tourfine Import and Export Co. Ltd for pricing and more information.
Product Parameter
| Model | SX3255DT384 Heavy Duty Type |
| Traction type | 6X4 |
| Driving type | LHD/RHD |
| Driver's cab | F3000 long flat roof, air conditioner, hydraulic driver seat, 4-point hydraulic suspension cabin |
| Dimension | Wheel base(mm): 3775+1400mm |
| Overall size(mm): 8600x2550x3450mm | |
| Engine | Maker: Weichai |
| Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling | |
| Engine model: WP10.380E32 Euro2 | |
| Maximum output: 380HP | |
| Rated speed: 2200rpm | |
| Max torque: 1600N.m/1500-1800rpm | |
| Number of cylinder:6 | |
| Displacement: 9.726L | |
| Clutch | 430mm |
| Transmission | Brand: FAST Model: 10JSD160 |
| Front axle | MAN axle 7.5 ton capacity |
| Rear axle | STR axle(16 ton*2, punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock) Ratio: 5.73 |
| Tyre | 12.00R20 Radial tyre (10+1 pcs) |
| Electrics | Operating voltage: 24V, negative grounded |
| Weight | Curb weight 12500kg |
| Loading capacity 30000kg | |
| Performance | Maximum driving speed 77km/h |
| Cargo Box | |
| Box inner size | 5400x2300x1500mm |
| Steel thickness | Floor 8mm, side & back 6mm |
| Lifting system | Middle T-type lifting system |
Detailed Photos
