| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | ISO9001 |
| Model Number | ZZ4257S3241W |

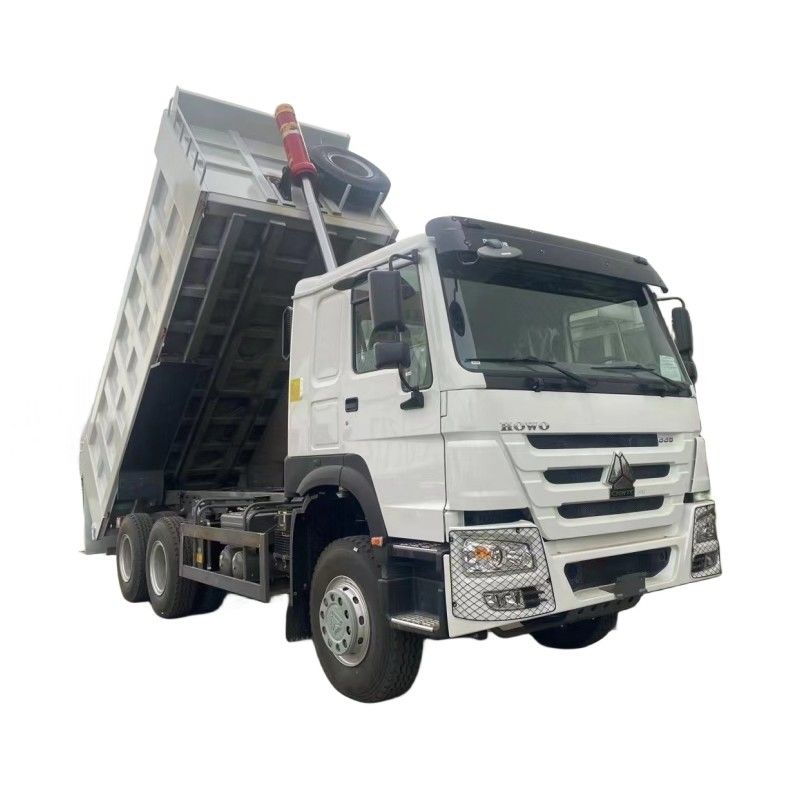

HOWO 6X4 10 wheels dump truck middle tipping is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on. The 10 wheels 6X4 dump truck with 25-30 tons capacity can meet your needs. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.
Product Parameter
|
Model
|
Sinotruk HOWO 6*4 Dump Truck | |
|
Engine model
|
WD615.69, Euro II emission standard, 4 stroke injection diesel engine,
6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system |
|
|
Maximum output
|
336PS (247kW) at 2200 rpm
|
|
|
Maximum torque
|
1350Nm at 1100-1600rpm
|
|
|
Bore
|
126mm Stroke: 130mm
|
|
|
Displacement
|
9.726L
|
|
|
Compression ratio
|
17.5:1
|
|
|
Specific fuel consumption
|
≤198g/kWh
|
|
|
Engine oil filling quantity
|
23L
|
|
|
Air compressors
|
WABCO Twin cylinders air compressors;
|
|
|
Cooling system filling quantity
(long-term filling) |
40L
|
|
|
Clutch
|
SINOTRUK's 430C diaphragm spring clutch, hydraulically operating with air assistance
|
|
|
Transmission
|
Transmission, model HW19710, 10 forward and 2 reverse
Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R) |
|
|
Propeller Shaft
|
Double universal joint propeller shaft with gear-shaped coupling flange
|
|
|
Front Axle
|
New HF9 series, with drum brake system
Steering with double T-cross section beam |
|
|
Rear Axle
|
HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Ratio: 5.73 |
|
|
Chassis
|
Frame:
|
High-strength U-profile frame, all cold riveted cross members and reinforced subframe
|
|
Front suspension:
|
semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
|
|
|
Rear suspension:
|
semi-elliptic leaf springs and bogie springs
|
|
|
Spare wheel carrier:
|
with one spare wheel
|
|
|
Steering
|
ZF8098, hydraulic steering with power assistance
Ratio: 22.2-26.2:1 |
|
|
Braking System
|
Front and rear drum brake, four-circuit protection valve
|
|
|
Service brake
|
dual circuit compressed air brake
|
|
|
Parking Brake
|
spring energy, compressed air operating on rear wheels
|
|
|
Auxiliary brake
|
engine exhaust brake
|
|
|
Wheel & Types
|
Rims
|
8.5-20,10 hole-steel
|
|
Types
|
12.00R20, 12.00R22.5, 315/80R22.5, 12.00-20
|
|
