| Place of Origin | CHINA |
| Brand Name | SINOTRUK |
| Certification | ISO9001 |
| Model Number | ZZ4257S3241W |
Product Parameter

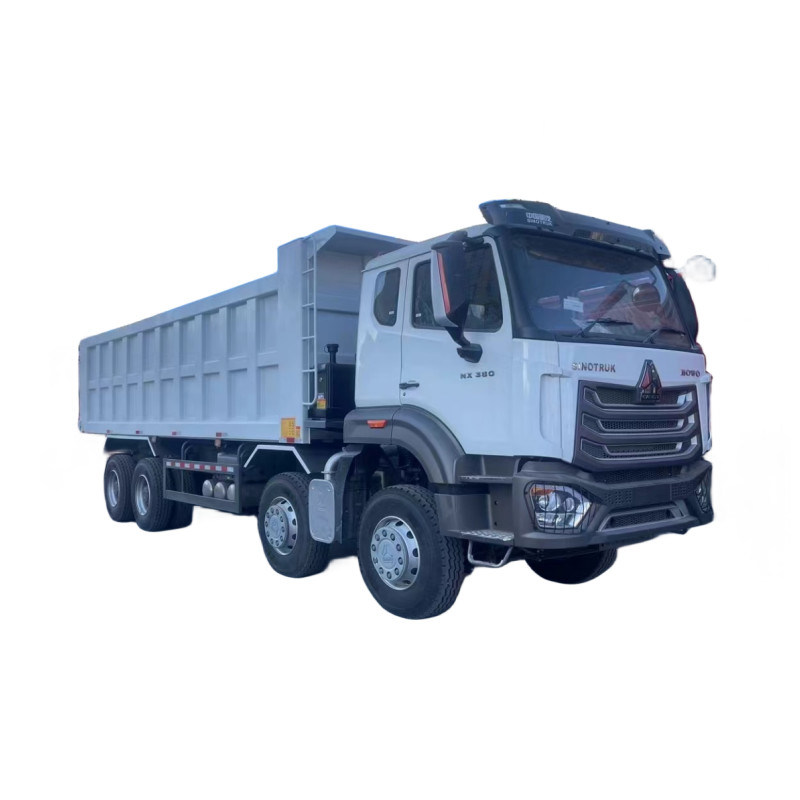

| SINOTRUK HOWO 8*4 Dump Truck with 371 HP | |||
| Vehicle Specication | Model | ZZ4257S3241W | |
| Traction(4x2,6x4,8x4) | 8x4 | ||
| Power(HP) | 371 | ||
| Weight Parameter | Complete Vehicle Kerb Mass(kg) | 9180 | |
| Maximum authorized total Mass(kg) | 25000 | ||
| Permissible loading capacity(kg) | 35000 | ||
| Dimension Parameter | External Dimensions(mm) |
Overall Length | 8545 |
| Width | 2500 | ||
| Height | 3170/3450 | ||
| Wheelbase(mm) | 3225/3825+1350 | ||
| Ground Clearance(mm) | 340 | ||
| Front/Rear overhang(mm) | 1500/1470,1670,1870 | ||
| Performance Parameter | Maximum Speed(km/h) | 79/83 | |
| Fuel consumption(L/100km) | 40 | ||
| Maximum Gradeability(%) | 20 | ||
| Turning diameter(m) | 15/16/17 | ||
| Recommended Configuration | Engine | Made | CNHTC |
| Engine model | WD615.47EuroII emission standard,Thermostat with 80ºC,Opening begin, Rigid fan | ||
| Rated Power | 371hp(273Kw)at 2200rpm | ||
| Maximum Torque | 1460Nm at 1300-1600rpm | ||
| Displacement(L) | 9.726 | ||
| Fuel tank(L) | 400 | ||
| Transmission | HW15710, 10 forward & 2 reverse | ||
| Transmission Type | Manual | ||
| Clutch(mm) | 430 | ||
| Front Axle | HF7, rated load of 7t | ||
| Rear Axle | ST16 Double Reduction Drive Axle (central reduction+wheel reduction),speed ratio:3.93, 4.42 | ||
| Steering | German ZF8098 Steering Gear Box, hydraulic steering with power assistance, Ratio: 22.2-26.2 | ||
| Brakes | Dual circuit compressed air brake | ||
| Tyres | 12.00R20,10pcs | ||
| Electrical | Battery | 2X12V/165Ah | |
| Alternator | 3-phase, 28V, 1500 W | ||
| Starter | 7.5Kw/24V | ||
| Cab | HOWO76 Standard cab, all-steel forward control, 55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||
Product pohots
